What to Look for When Buying Used Kitagawa Workholding
Kitagawa builds chucks, rotary tables, and cylinders to tight tolerances and long service lives, and most units can be fully rebuilt. Inspection still matters, because workholding lives in a harsh coolant-and-chip environment. Here is what to check on used equipment.

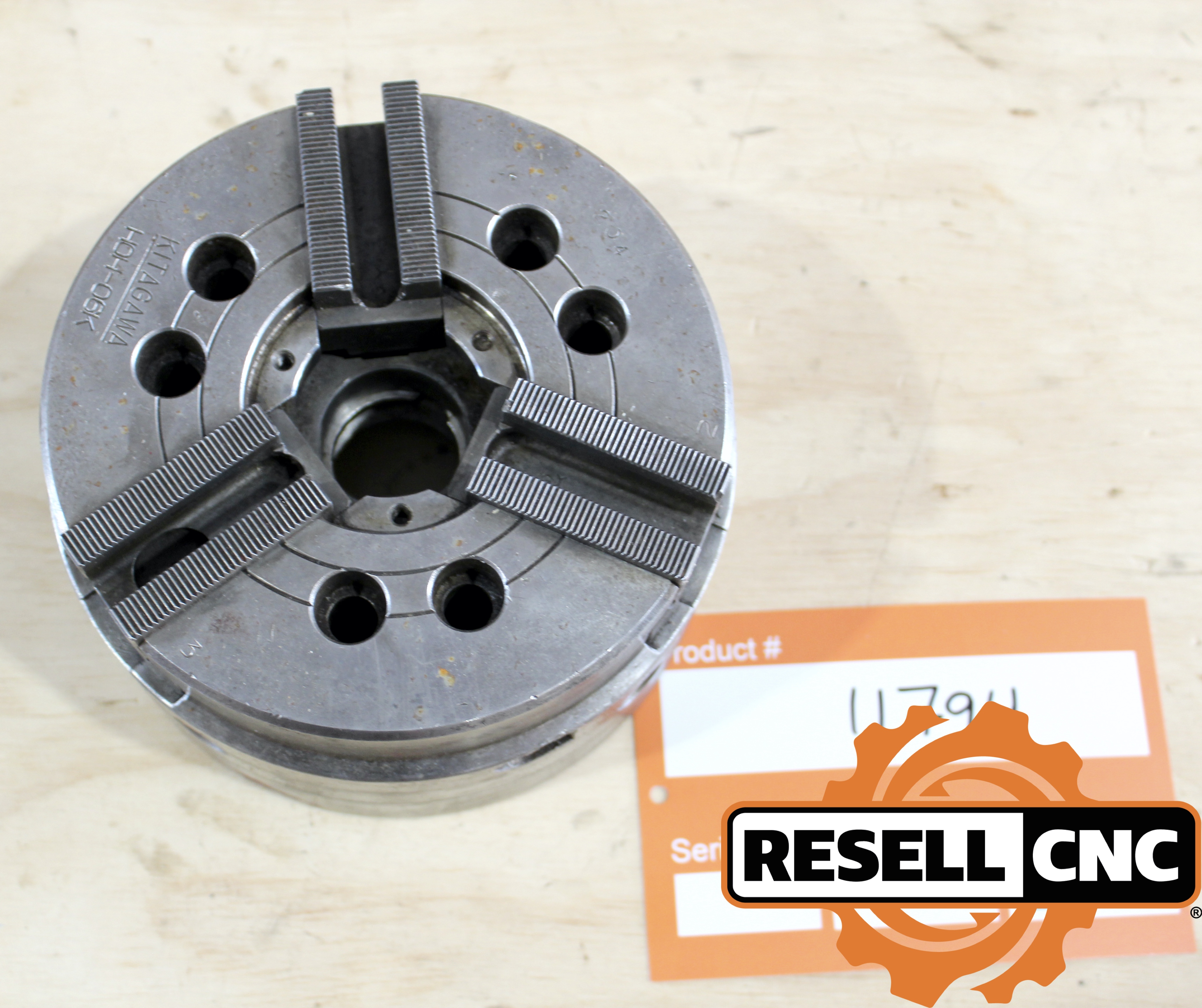

On power chucks, check grip force, runout, and jaw wear. Inspect the chuck body and master jaws for scoring, and confirm the serrations on the master jaws are crisp so soft jaws seat repeatably. Measure gripping force with a grip dynamometer if available, and confirm the rated maximum RPM matches your spindle. Look for coolant ingress, which washes out grease and accelerates wedge and pinion wear. A chuck that has lost grip force can usually be resealed and re-greased.
On NC rotary tables, check indexing accuracy, backlash, and seals. Test repeatability by indexing to a position from both directions and comparing with an indicator. Check worm-gear backlash and confirm the brake or clamp holds full rated torque during a simulated cut. Rotate the table and listen for bearing noise. Seal condition is the single biggest factor in used-table life, since coolant intrusion damages bearings and the worm set. On tilting 5-axis units such as the TT and TW, verify both the rotary and tilt axes and confirm the trunnion clamps hold.
On hydraulic cylinders, check the rotary seal and draw connection. Kitagawa F, S, and Y series cylinders should hold pressure without leaking at the rotary distributor. Inspect the draw-tube or draw-bar threads, confirm full stroke, and verify the piston and safety sensors if equipped.
Confirm it fits your machine. A chuck must match your spindle nose (A2-5, A2-6, A2-8, or A2-11) and mate to a compatible cylinder and adapter. A rotary table must match your machine's rotary-axis drive and control (Fanuc, Siemens, Mitsubishi, or Haas) and physically fit the table surface and T-slots. Matching these details up front avoids costly adapters and downtime later.
Kitagawa Power Chucks

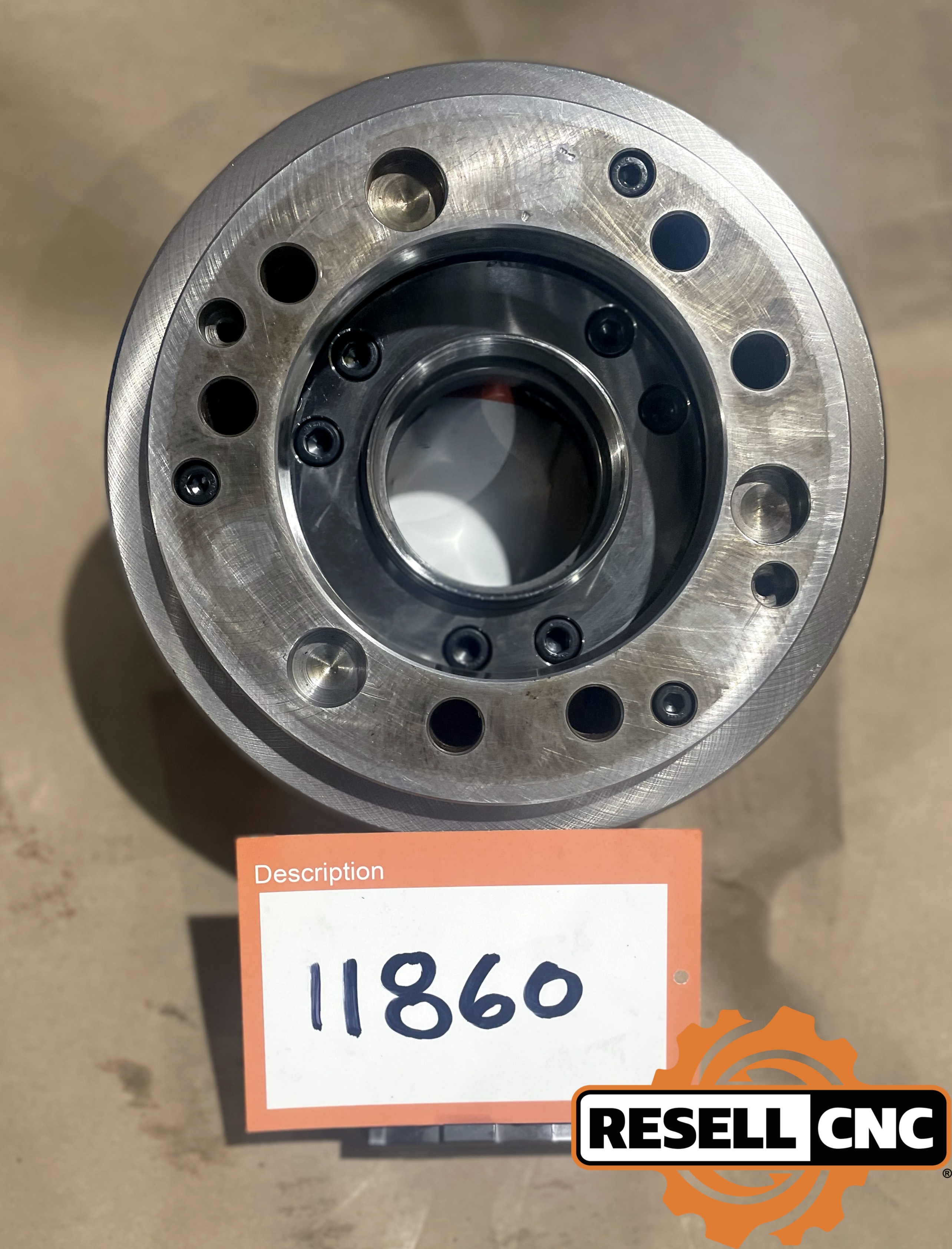

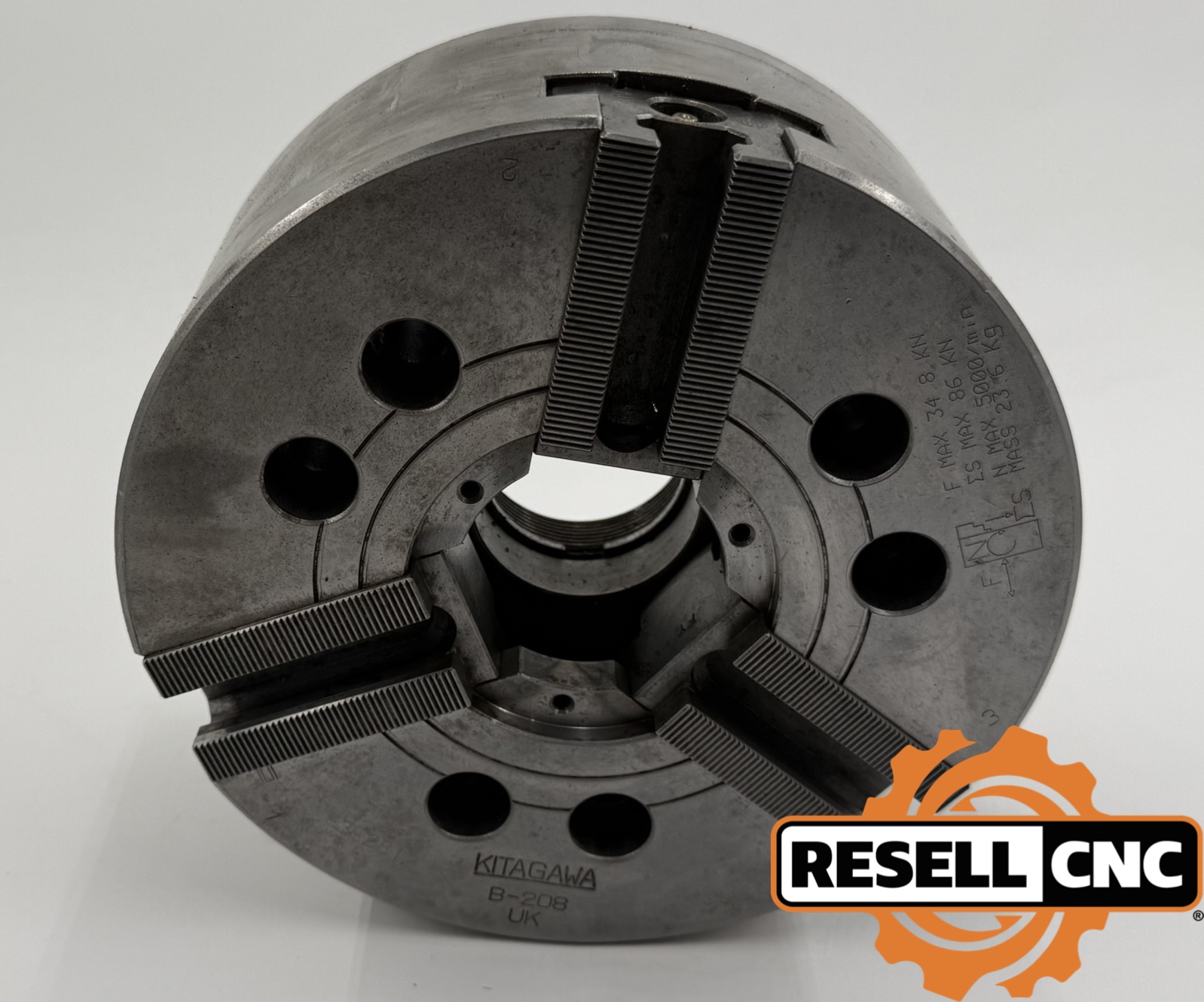

B-200 Series (Standard Through-Hole)

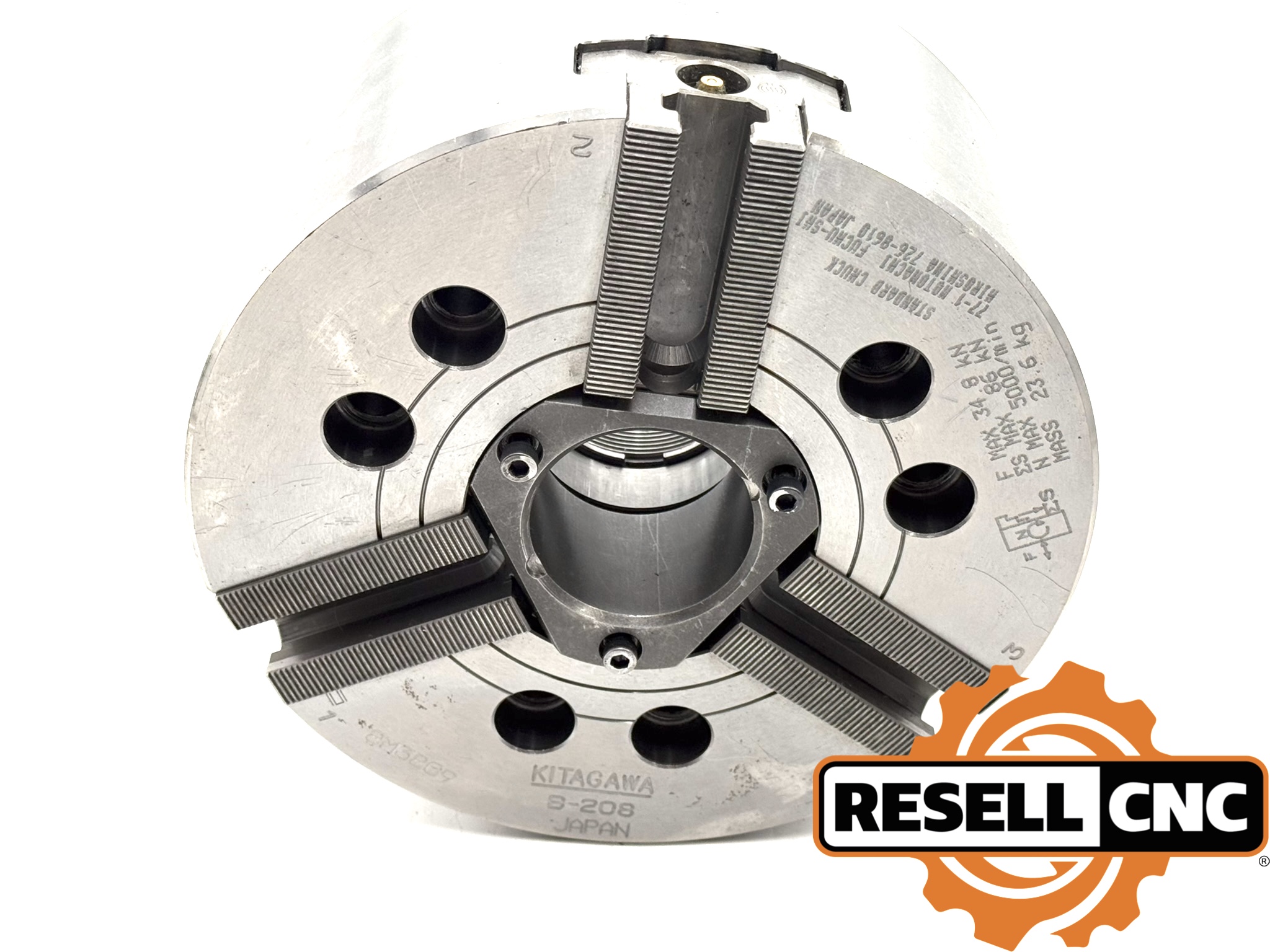

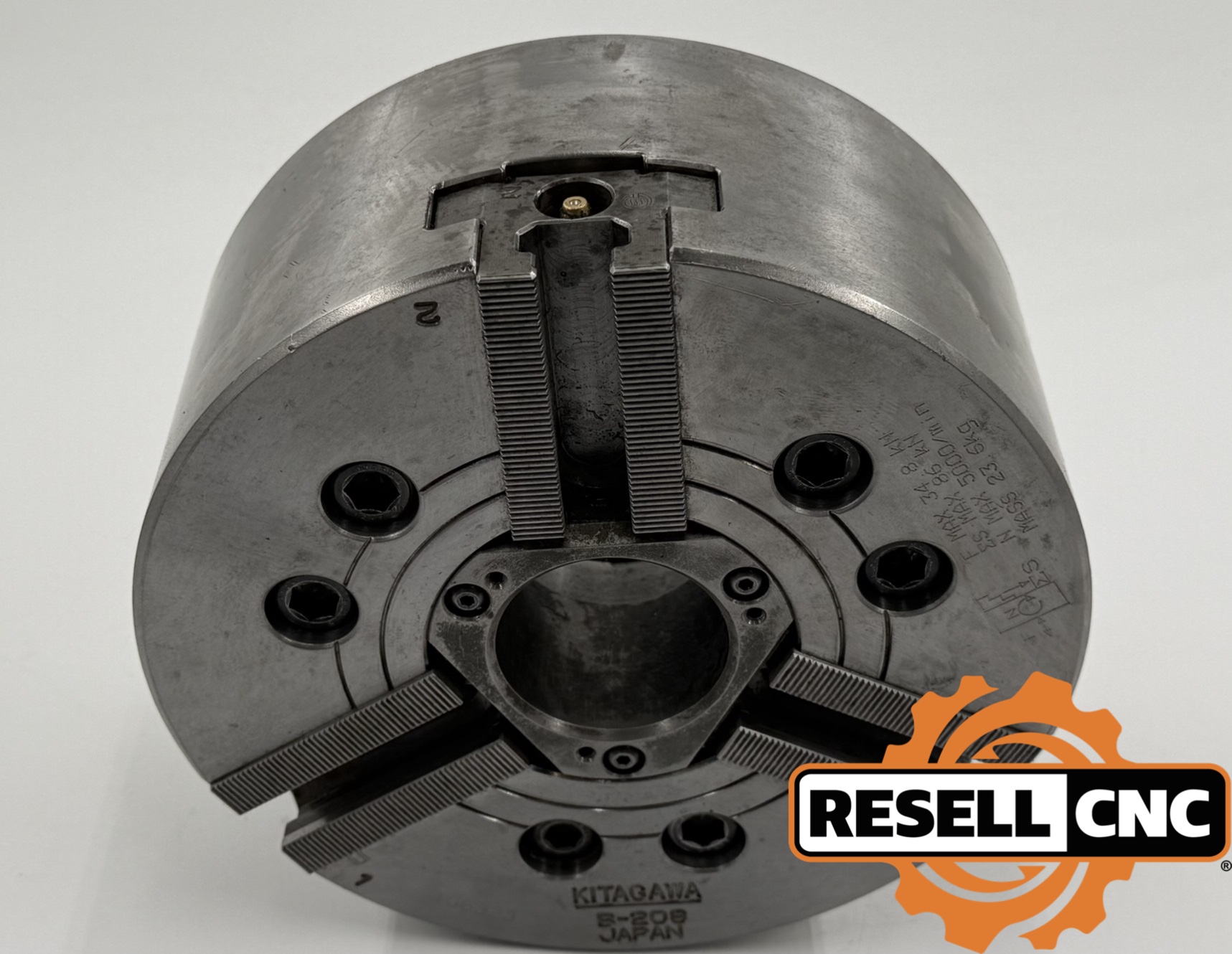

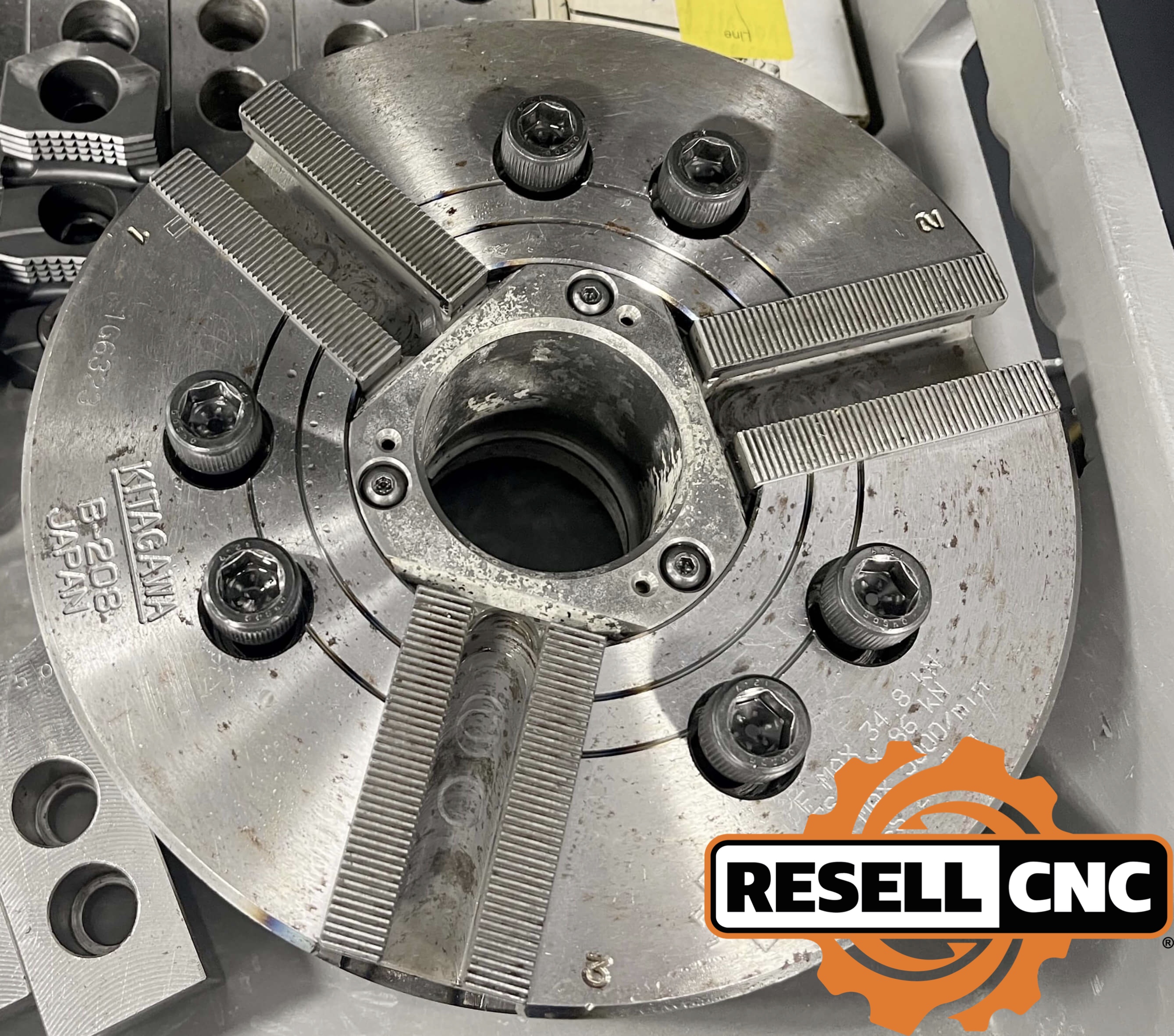

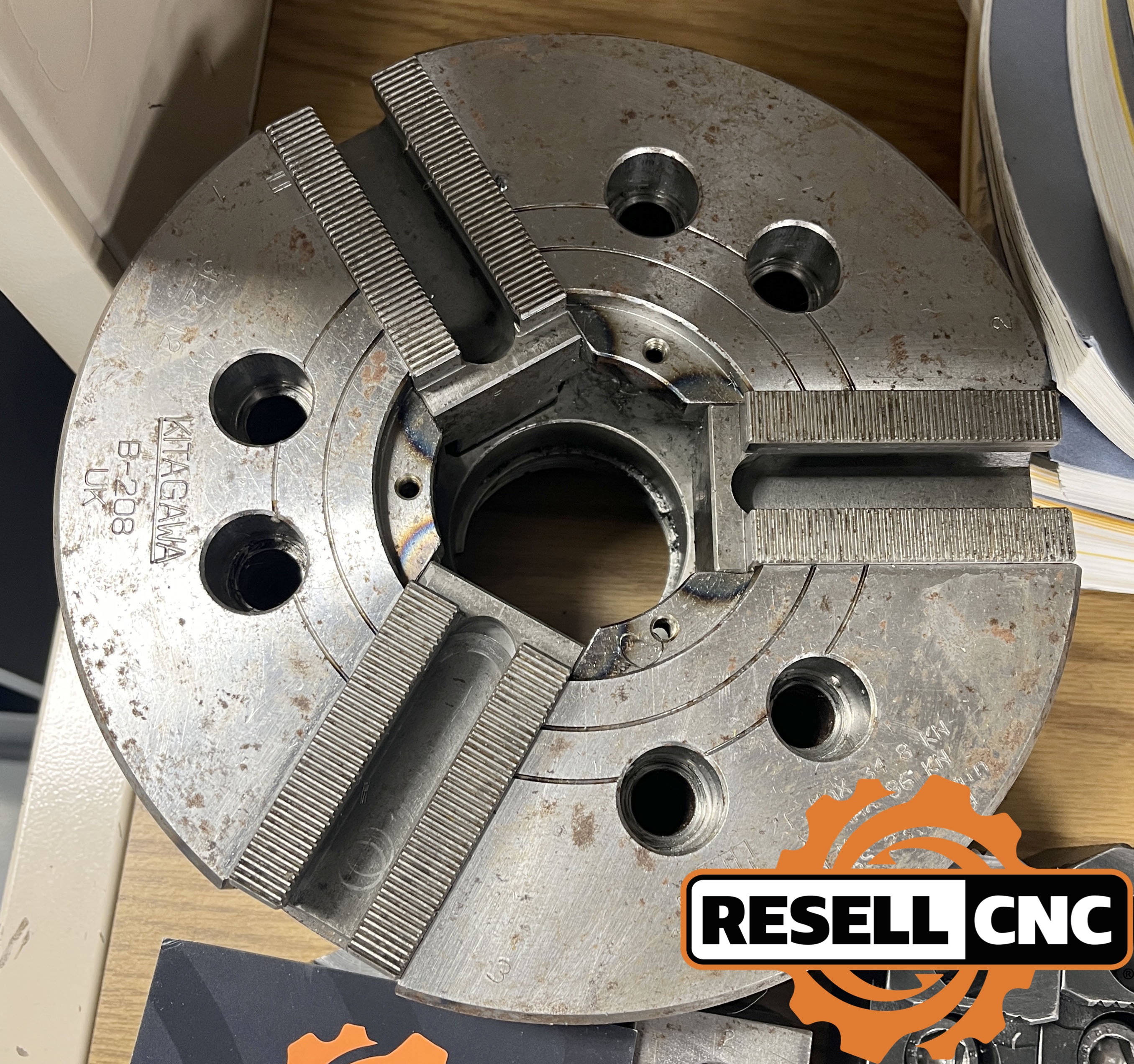

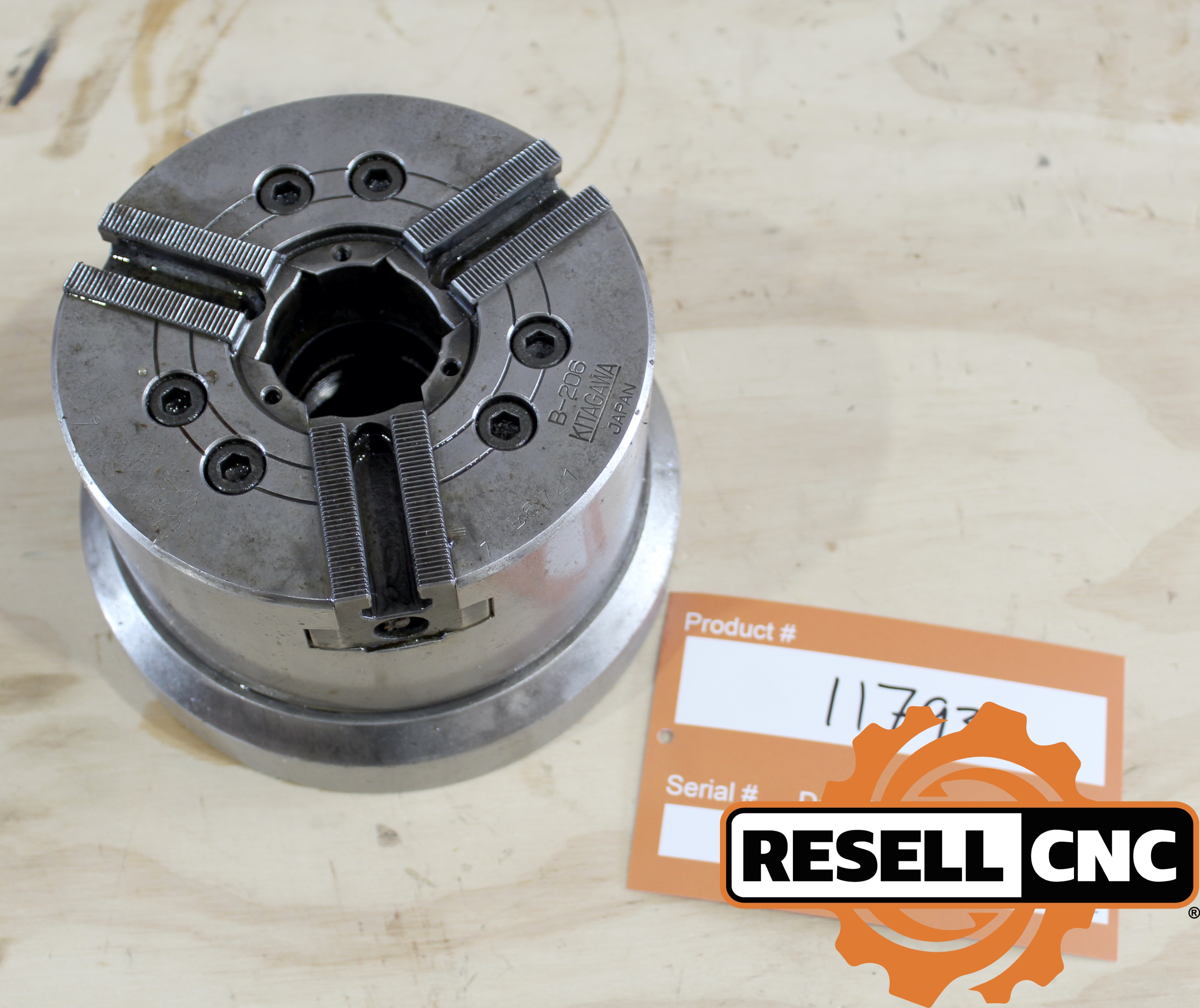

The B-200 series is Kitagawa's global-standard 3-jaw wedge-type power chuck, recognized worldwide for high-speed, through-hole turning. Models scale by through-hole and diameter, from the compact B-206 and B-208 through the B-210, B-212, and B-215, with larger sizes for heavy work. These are the most commonly traded Kitagawa chucks on the used market.

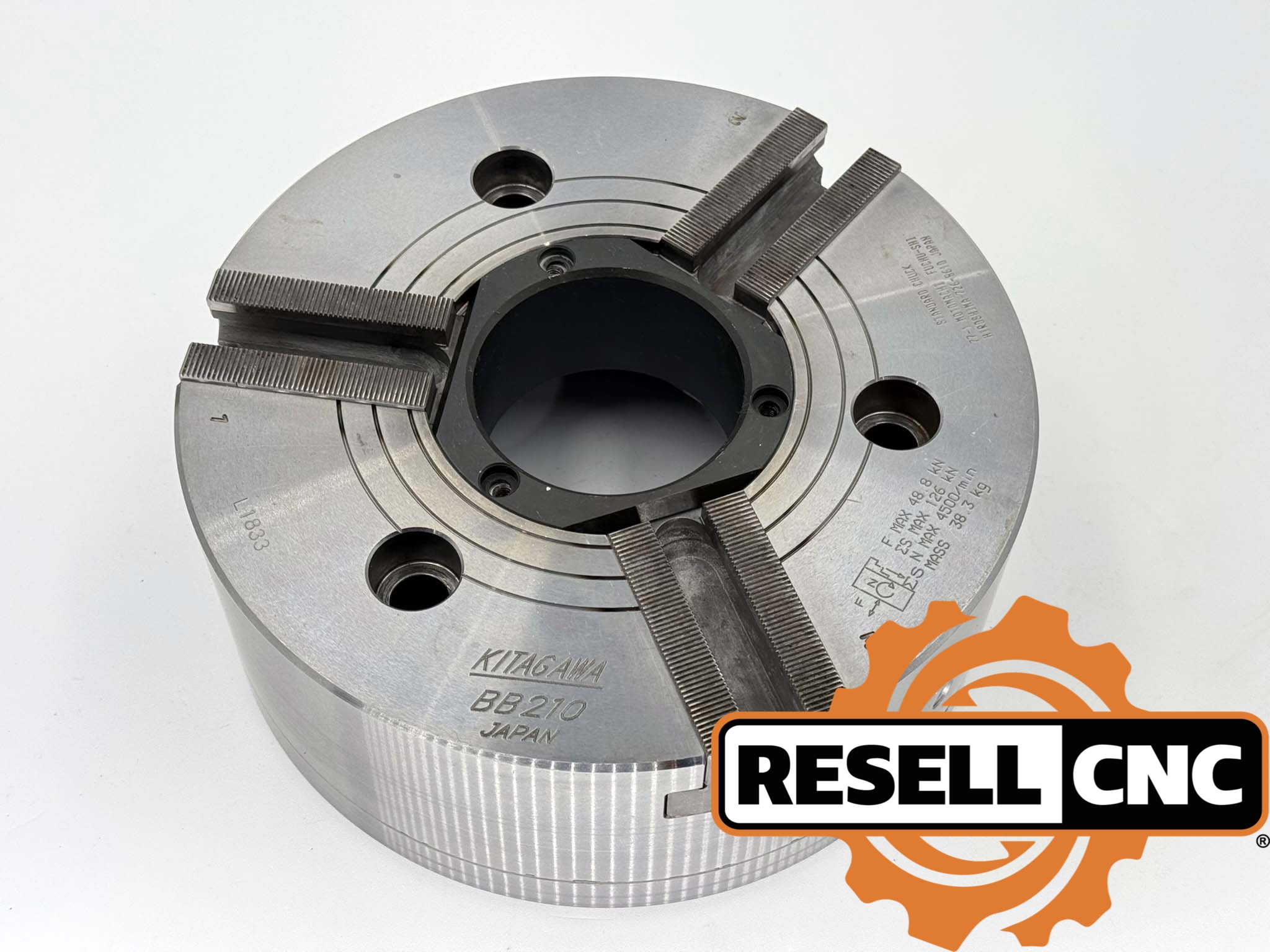

BB-200 Series (Super Large Bore)
The BB-200 series provides an oversized through-hole for large-diameter bar, pipe, and shaft work, popular in oil-country, energy, and large-part turning, with adaptors for a range of spindle noses.
N-Series & Specialty Chucks
Closed-center N-series chucks maximize gripping force where no through-hole is required. Kitagawa also builds high-speed, quick-jaw-change, and custom engineered chucks for automation cells and multi-tasking machines.
Kitagawa NC Rotary Tables
4th-Axis Single-Axis Tables
Compact MR and MK tables and the ultra-thin CK series suit smaller VMCs and tight table space. The GT and TMX series deliver high clamping torque for heavy cutting, while the side-motor TR and back-motor TBX designs minimize protrusion on the machine table. The TP mega-through-hole tables handle shaft and pipe parts, and the high-speed MX160 targets fast indexing.
5-Axis Tilting & Multi-Spindle
The TT series tilting tables and the two-axis TW models add full 5-axis capability to machining centers. TM multi-spindle tables raise throughput for higher-volume production by holding several parts at once.
Accessories & Cylinders
Kitagawa F, S, and Y series rotary hydraulic cylinders actuate the power chucks in open-center and closed-center designs. Soft jaws, hard jaws, and rebuild kits are widely stocked, which keeps used Kitagawa workholding economical to return to service.
How to Sell Your Used Kitagawa
Kitagawa workholding holds strong resale value thanks to the brand's global reputation, long service life, and the ready availability of rebuild parts. B-200 chucks and MR, GT, and TT rotary tables are in especially steady demand.
Resell CNC buys used Kitagawa chucks, rotary tables, and cylinders, nationwide.
- Contact us, call (844) 478-8181 or email sales@resellcnc.com.
- Free appraisal within 24 hours, no obligation.
- Accept the offer, and we handle rigging, transport, and logistics.
Frequently Asked Questions About Used Kitagawa Workholding
Does Kitagawa build CNC machines?
No. Kitagawa is a workholding manufacturer, not a machine tool builder. It makes the power chucks, NC rotary tables, and hydraulic cylinders that mount on CNC lathes and machining centers, and it is widely regarded as the world leader in CNC lathe chucks.
Are used Kitagawa chucks and rotary tables reliable?
Yes. Kitagawa equipment is built for around-the-clock production and tight tolerances, and nearly every chuck and table can be resealed and rebuilt to restore accuracy and grip force. A well-maintained used unit can deliver many more years of service.
What CNC controls do Kitagawa rotary tables work with?
Kitagawa NC rotary tables interface with Fanuc, Siemens, Mitsubishi, and Haas rotary-axis drives, among others. Confirming that the drive and control match your machine is the key compatibility step when buying used.
What should I inspect before buying a used Kitagawa?
On chucks, check grip force, runout, jaw serrations, and coolant ingress. On rotary tables, check indexing repeatability, worm-gear backlash, brake torque, and seal condition. On cylinders, check the rotary seal and stroke. See the buying guide above for detail.
Which Kitagawa models hold their value best?
B-200 series power chucks and MR, GT, and TT rotary tables hold value best because of steady demand and broad machine compatibility. Call (844) 478-8181 for current valuations.
What is the difference between a 4th-axis and a 5-axis rotary table?
A 4th-axis table such as the MR or GT rotates about one axis to present multiple faces of a part. A 5-axis tilting table such as the TT or TW adds a tilt axis, so the machine can approach compound angles in a single setup.
Does Resell CNC offer financing on used Kitagawa equipment?
Yes. Resell CNC offers flexible financing options to help your shop acquire the workholding it needs. Contact us at (844) 478-8181 to discuss terms.
How do I sell my used Kitagawa?
Contact Resell CNC at (844) 478-8181 or sales@resellcnc.com. We buy Kitagawa chucks, rotary tables, and cylinders of every series, nationwide, with a free appraisal within 24 hours.
