What to Look for When Buying a Used MultiCam
MultiCam machines span CNC routers, plasma cutters, waterjets, fiber lasers, and digital knife systems, each with different inspection points. The brand's modular design, welded-steel construction, and proprietary EZ Control make these machines straightforward to evaluate on the used market.
On CNC routers, check the gantry, rails, and spindle. Inspect the steel gantry for square, flat motion across the full X and Y travel. Run the machine at rapid traverse and listen for bearing noise on the linear rails or rack-and-pinion drive. Check spindle runout at the collet nose and verify the spindle holds rated RPM without thermal creep. Examine the vacuum table for flatness and the pump for strong hold-down. On machines with an automatic tool changer, cycle every pocket and verify clean pickup and release.
On plasma, waterjet, and laser systems, verify the motion platform and power source separately. Cut quality depends on the power supply (Hypertherm on plasma, intensifier pump on waterjet, laser source on fiber). Confirm consumable counts, pump hours, and laser source hours are documented. Check slat grate condition on plasma, and verify abrasive feed and high-pressure plumbing on waterjets.
Check the EZ Control generation and software version. EZ Control has evolved across several generations. Older controllers may need software updates or hardware retrofits to accept modern CAD/CAM post-processors. Verify the controller boots cleanly and loads programs.
MultiCam CNC Router Series
1000 Series
The 1000 Series is MultiCam's compact entry-level 3-axis CNC router for sign shops, small cabinet shops, and prototype work. Belt-driven X and Y axes, servo motors, and EZ Control.

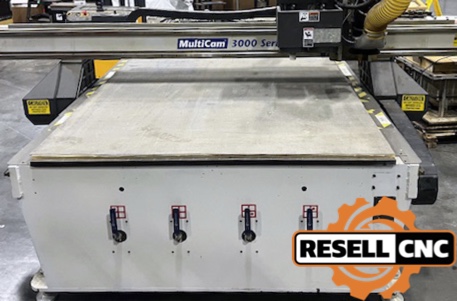

3000 Series
The 3000 Series is MultiCam's best-selling production router and the most commonly traded model on the used market. Rack-and-pinion drives, rigid welded-steel frame, high-vacuum phenolic table, and optional ATC. Available in multiple table sizes covering 4x8 sheet processing and larger. The workhorse of sign shops and mid-size cabinet operations.
5000 Series
The 5000 Series is heavy production routing with faster rapids, higher-torque servo drives, and heavier frame construction. Configured with aggregate heads, drill banks, and saw units, the 5000 becomes a full nested-based cabinet manufacturing platform.
7000 Series
The 7000 Series is MultiCam's heavy-format router for large sheet goods, thick plastics, aluminum plate, and composite panels. Extra rigidity, higher horsepower spindles, and extended Z-axis travel for 3D machining.
Apex Series (Apex1R, Apex3R, Apex3M, Apex5M)
The Apex Series is MultiCam's high-performance tier with upgraded drives, faster rapids, and optional 5-axis on the Apex5M. Apex1R and Apex3R are 3-axis routers; Apex3M and Apex5M add multi-axis machining. Built for shops that need tighter tolerances and aggressive cycle times.
V-Series
The V-Series is a compact precision router platform for education, R&D, and small-shop applications where footprint and accuracy matter more than raw production volume.
MultiCam Plasma, Waterjet & Laser
The MultiCam CNC Plasma line integrates with Hypertherm power supplies and cuts mild steel, stainless, and aluminum across a wide thickness range. Waterjet systems use high-pressure abrasive cutting for any material with no heat-affected zone. Fiber laser cutters deliver high-speed sheet metal processing with low operating cost per part. Digital finishing knife systems serve sign, graphics, gasket, and packaging industries with oscillating, tangential, and drag blade heads.
How to Sell Your Used MultiCam
MultiCam machines hold strong resale value thanks to the brand's US manufacturing footprint, large installed base, and ongoing EZ Control software support. The 3000 Series, 5000 Series, and Apex routers see consistent secondary-market demand.
Resell CNC buys used MultiCam machines, every model, every generation, nationwide.
- Contact us — call (844) 478-8181 or email sales@resellcnc.com.
- Free appraisal within 24 hours, no obligation.
- Accept the offer — we handle rigging, transport, and logistics.
Frequently Asked Questions About Used MultiCam Machines
Are used MultiCam machines reliable?
Yes. MultiCam builds rugged welded-steel machines with well-supported servo and rack-and-pinion drives. The brand has operated continuously since 1989 and maintains an active US service and parts network, so a used MultiCam from a running shop is generally a safe buy after proper inspection.
What CNC control does MultiCam use?
MultiCam machines run the proprietary EZ Control interface, designed to be operator-friendly with conversational programming and direct post-processor support for the major CAD/CAM systems. Plasma machines often integrate Hypertherm CNC and ProNest nesting software.
What should I inspect before buying a used MultiCam?
Check gantry squareness and rail condition, spindle runout and RPM, vacuum table hold-down strength, and controller boot and program-load behavior. On plasma or waterjet, inspect the power source, pump hours, and consumables. Confirm EZ Control firmware is current.
What MultiCam models hold their value best?
The 3000 Series, 5000 Series, and Apex routers are the strongest performers on the used market thanks to their broad installed base and versatility across sign, cabinet, and metal fab work. Well-maintained CNC plasma tables also retain value.
Where are MultiCam machines made?
MultiCam machines are designed and manufactured in the United States at the company's Texas facility near DFW Airport. US manufacturing is core to the brand's identity and a significant factor in strong parts and service availability on legacy machines.
What is the difference between the MultiCam 3000 and the Apex Series?
The 3000 Series is the standard production router with rack-and-pinion drives and a rigid welded frame. The Apex Series is a higher-performance tier with upgraded drives, faster rapids, tighter tolerances, and optional 5-axis on the Apex5M. Both share the EZ Control platform.
Does Resell CNC offer financing on used MultiCam machines?
Yes. Resell CNC offers flexible financing options to help your business acquire the MultiCam equipment it needs. Contact us at (844) 478-8181.
How do I sell my used MultiCam?
Contact Resell CNC at (844) 478-8181 or sales@resellcnc.com. We buy every MultiCam router, plasma, waterjet, and laser model, nationwide. Free appraisal within 24 hours.
