What to Look for When Buying Used Vektek Workholding
Inspect hydraulic seals and check for leaks under rated pressure. Pressurize each unit to its 5,000 psi rating and hold under load for several minutes. Watch for seepage at the rod seal, piston seal, or port fittings. Minor weeping at port threads is often a sealing-washer issue; internal bypass past a worn piston seal shows up as slow drift. Vektek seal kits cover nearly every component, so a leaking unit is typically rebuildable.
Check the clamp arm, rod, and contact face. On swing clamps, inspect the clamp arm for cracks, bending, or crash damage. Verify the rod surface is free from scoring, pitting, or corrosion, which will destroy the rod seal. Check the clamp contact face for excessive wear or galling. On work supports, depress the plunger by hand to confirm smooth spring-advance return and verify the locking action holds under simulated cutting load.
Verify port threads and mounting surfaces. Inspect hydraulic port threads (SAE straight-thread or NPT depending on model) for damage from over-tightening or cross-threading. Check the mounting flange or threaded body for cracks, distorted threads, or fixture-plate fretting wear. Confirm the part number stamping is legible for cross-referencing current specs, seal kits, and replacement parts.
Test hydraulic power units under load. Run each HPU through a full pressurization cycle; verify it reaches and holds 5,000 psi without excessive cycling. Check the reservoir for water, particulate, or oxidized fluid (dark or burnt oil indicates overheating). Inspect the relief valve, accumulator, and pressure gauge. Check electric HPUs for motor noise, bearing condition, and proper voltage.
Vektek Product Families
Swing Clamps
Vektek swing clamps are the brand's flagship product and the most common hydraulic clamping element in CNC fixturing. The line includes compact, standard, and heavy-duty sizes in single-acting (spring-return) and double-acting (hydraulic-return) configurations. Upper- and lower-flange mounting variants suit top-mount and through-fixture installations, and clamp arms are user-configurable for length and contact geometry.
Work Supports
Vektek work supports back up the workpiece during heavy cutting to prevent deflection, chatter, and dimensional error. Spring-advance models extend automatically against the part and lock hydraulically; air-advance models use shop air for the extension stroke with added control over advance force. Standard and heavy-duty capacities cover thin aerospace skins through large structural castings.
Pull, Push & Block Cylinders
Vektek's actuator line covers virtually any fixture geometry. Pull cylinders apply tension-based clamping for retract-style fixtures. Push cylinders extend the rod for direct clamping. Block cylinders integrate the cylinder body into a flat mounting block. All use the 5,000 psi rating and standardized ports.
Edge Clamps, Link Clamps & Hydraulic Vises
Edge clamps apply lateral clamping force to part edges, freeing the top surface for machining. Link clamps rotate out of the way for part loading, then swing into clamping position. Vektek hydraulic vises provide self-contained clamping in a traditional vise body for general-purpose fixturing.

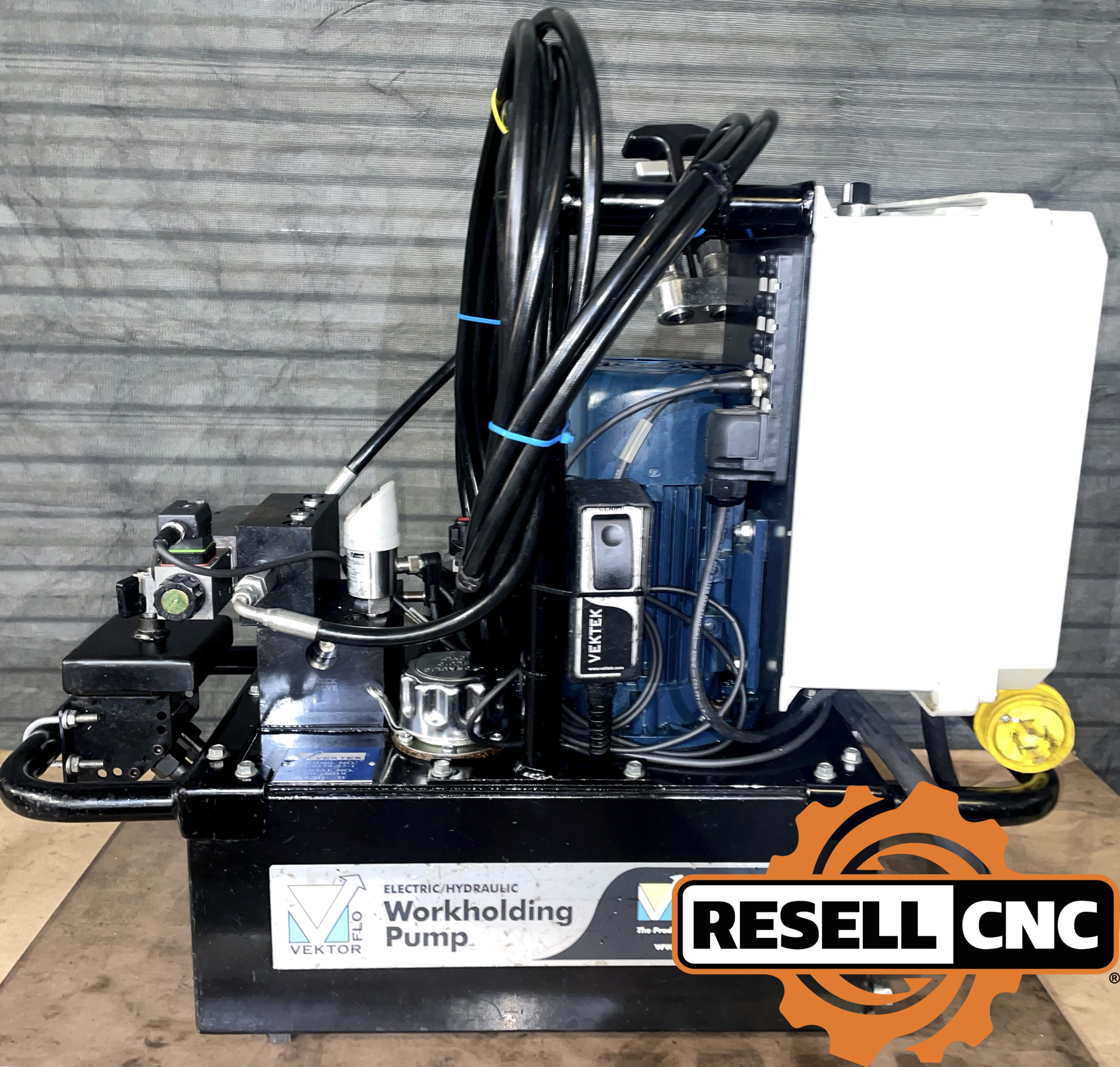

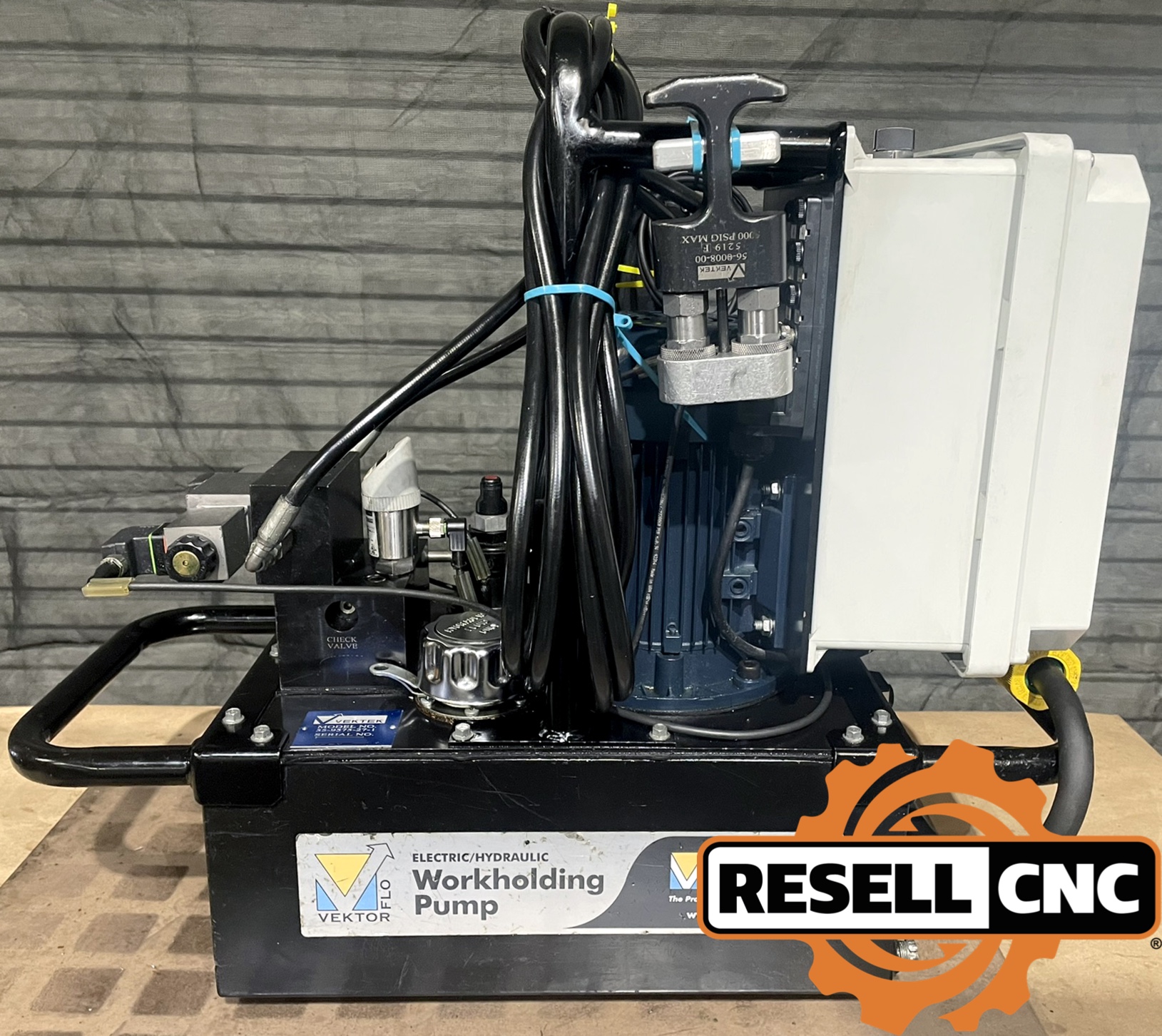

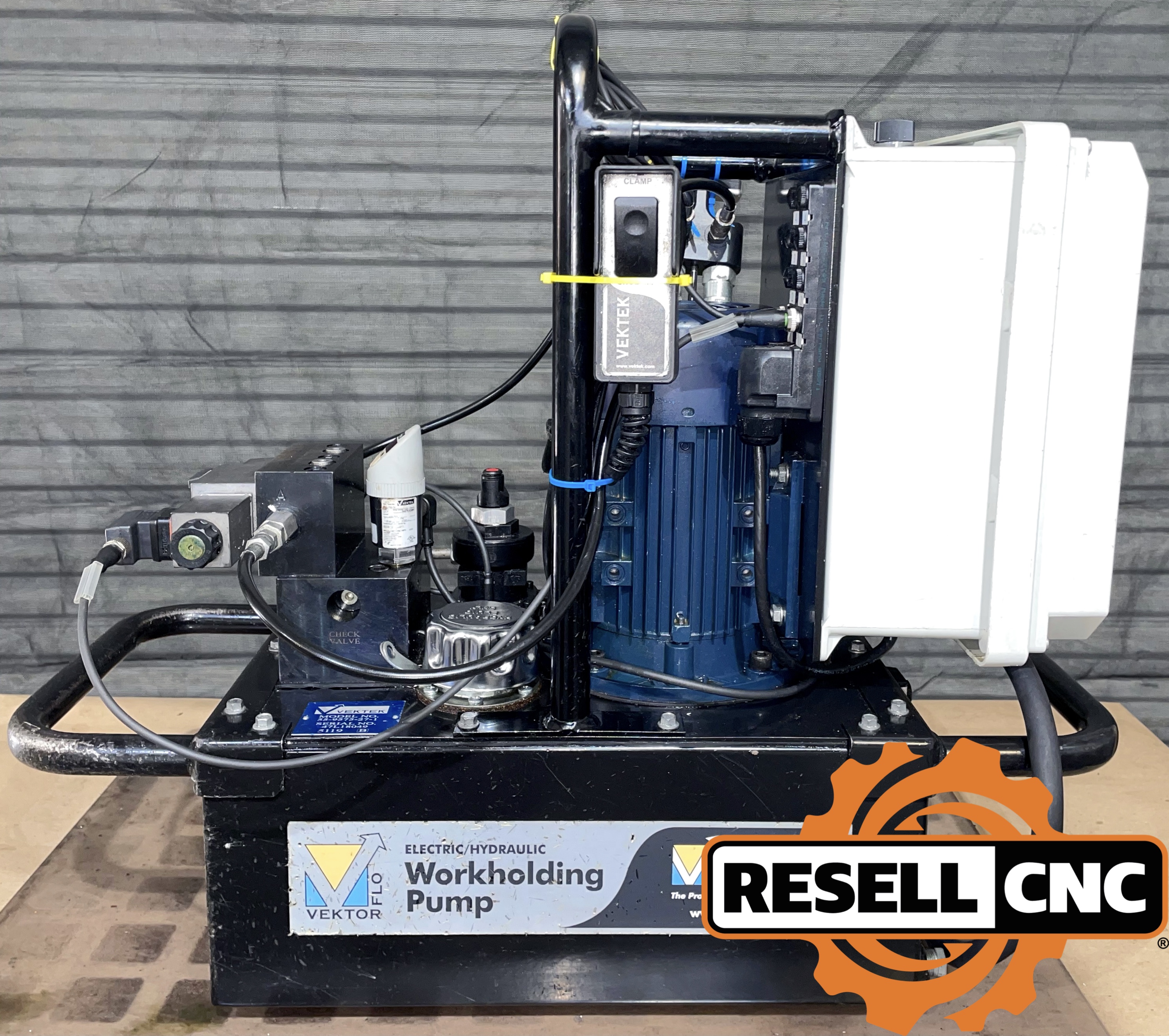

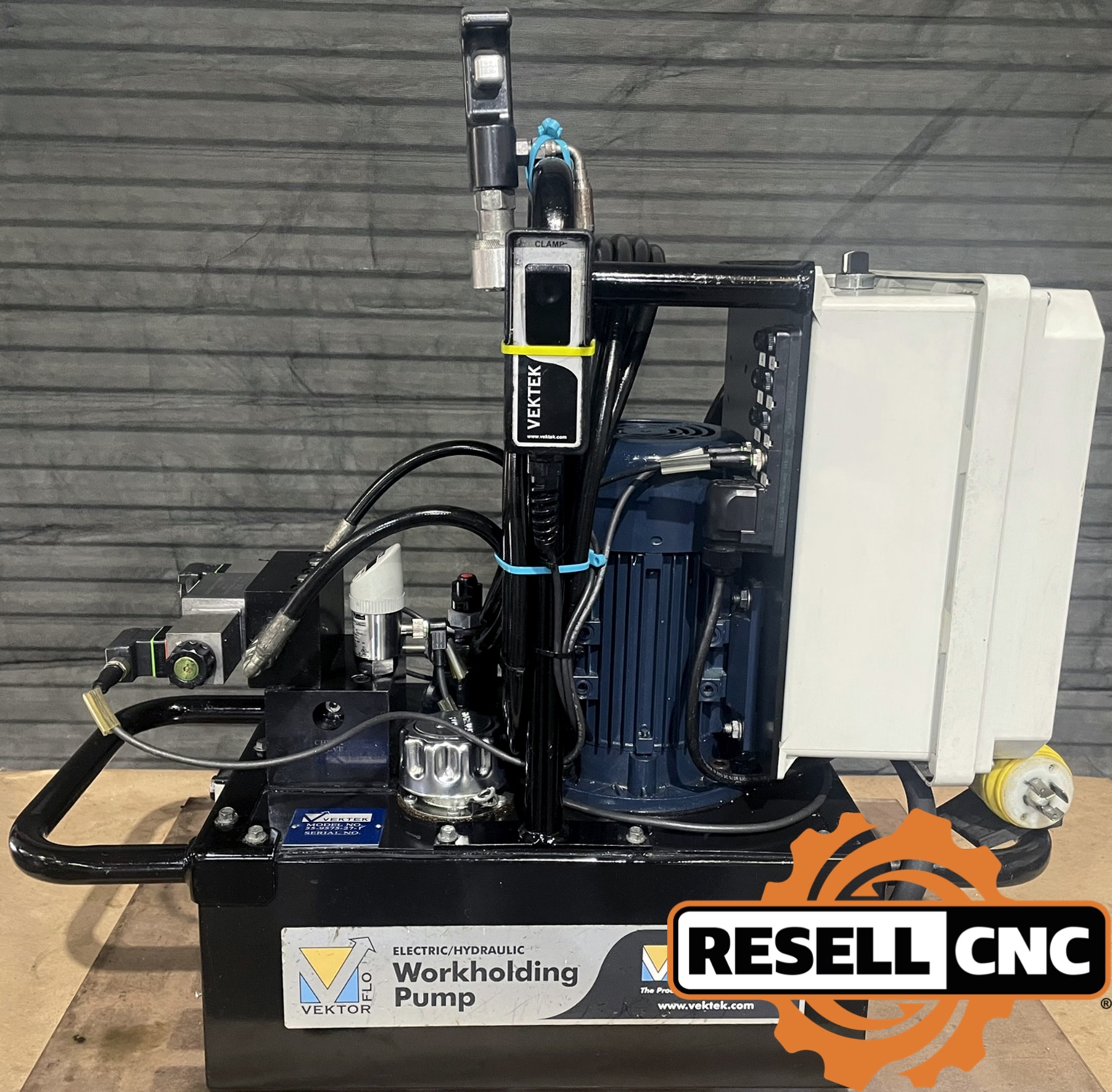

Hydraulic Power Units
Vektek hydraulic power units (HPUs) generate the 5,000 psi pressure for the workholding system. Hand-pump units suit single-fixture cells, air-over-hydraulic units use shop air for continuous operation, and electric units deliver the highest flow rates for large multi-fixture installations.
How to Sell Your Used Vektek Workholding
Vektek components hold strong resale value thanks to American manufacturing, a modular product line, and the wide installed base across North American CNC shops. Swing clamps, work supports, and complete fixture packages are in particular demand.
Resell CNC buys used Vektek workholding, individual components or complete fixtures, nationwide.
- Contact us — call (844) 478-8181 or email sales@resellcnc.com.
- Free appraisal within 24 hours, no obligation.
- Accept the offer and we handle packaging, transport, and logistics.
Frequently Asked Questions About Used Vektek Workholding
Are used Vektek hydraulic clamps reliable?
Yes. Vektek components are engineered for industrial CNC use and routinely deliver decades of service. Most worn units can be returned to full service with a seal kit rebuild rather than replacement, making used Vektek workholding an excellent value versus new.
What operating pressure does Vektek workholding use?
The Vektek standard line operates at 5,000 psi, the dominant rating for hydraulic workholding in North America. Components are generally cross-compatible with other 5,000 psi systems via standard SAE port fittings.
Is Vektek still in business?
Yes. Vektek was acquired by Heinrich Kipp Werk of Germany in 2018; the brand, product line, and Emporia, Kansas facility remain intact, serving the North American market under the Vektek name.
Can I still get parts and seal kits for older Vektek components?
Yes, in most cases. Vektek has maintained excellent backward compatibility, and seal kits, replacement clamp arms, and service parts are available for most of the legacy catalog. Always cross-reference the part number stamped on the component before ordering.
What should I inspect before buying used Vektek workholding?
Check hydraulic seals for leaks under rated pressure, rod surfaces for scoring or corrosion, port threads and mounting flanges for damage, and that the part number is legible. For power units, check fluid condition and run a full pressurization cycle.
Which Vektek products hold their value best?
Swing clamps, work supports, and electric hydraulic power units retain the strongest resale values. Complete fixture packages with matched clamps, supports, and a sized HPU command a premium over piecemeal sales. Call (844) 478-8181 for current valuations.
Does Resell CNC offer financing on used Vektek workholding?
Yes. Resell CNC offers flexible financing options. Call (844) 478-8181 to discuss terms for components or complete fixtures.
How do I sell my used Vektek workholding?
Contact Resell CNC at (844) 478-8181 or sales@resellcnc.com. We buy all Vektek products, individual components or complete fixtures, nationwide. Free appraisal within 24 hours.
