What to Look for When Buying a Used Wotan Boring Mill
Wotan horizontal boring mills are built for decades of heavy service, with cast-iron construction and precision spindle assemblies that deliver exceptional accuracy on large workpieces. Most available units have significant hours, so thorough inspection is essential.
Inspect the spindle and spindle sleeve. Check runout at the spindle nose using a test bar and indicator. Extend the quill to full travel and measure for deflection and play. On machines with power drawbar, verify clamping force and toolholder retention. Listen for bearing noise across full RPM. Spindle reconditioning is possible but expensive, so spindle condition is a primary value driver.
Check the table, ways, and gibs. On table-type models (B75, B105, B130), inspect the table surface for wear, gouging, or previous rework. Test all axis movements for smooth travel and verify even wear on the ways. Measure backlash on each axis with a dial indicator. Wotan ways and gibs can be re-scraped — factor reconditioning cost into evaluation.
Evaluate the column and headstock. The column carries the spindle headstock; looseness in vertical travel directly impacts bore accuracy. Verify smooth headstock movement across full Z-stroke. On floor-type machines, inspect the floor plate and T-slots. Check the column base for settling or shifting.
Assess control and drive condition. Many Wotan machines have been retrofitted with CNC controls (typically Siemens or Heidenhain) replacing original manual or early NC systems. On retrofitted units, verify all axes respond correctly to programmed moves, test encoders and scales, and confirm the retrofit was performed professionally with documentation. On manual machines, test all handwheels, feeds, and rapid traverse.
Wotan Table-Type Horizontal Boring Mills
B75 Series
The Wotan B75 is a compact table-type horizontal boring mill with a 75mm (~3-inch) spindle. It suits medium-duty boring, milling, drilling, and tapping. The B75 is the most commonly traded Wotan model on the used market due to its versatility and manageable footprint. Available in manual and CNC-retrofit configurations.
B105 Series

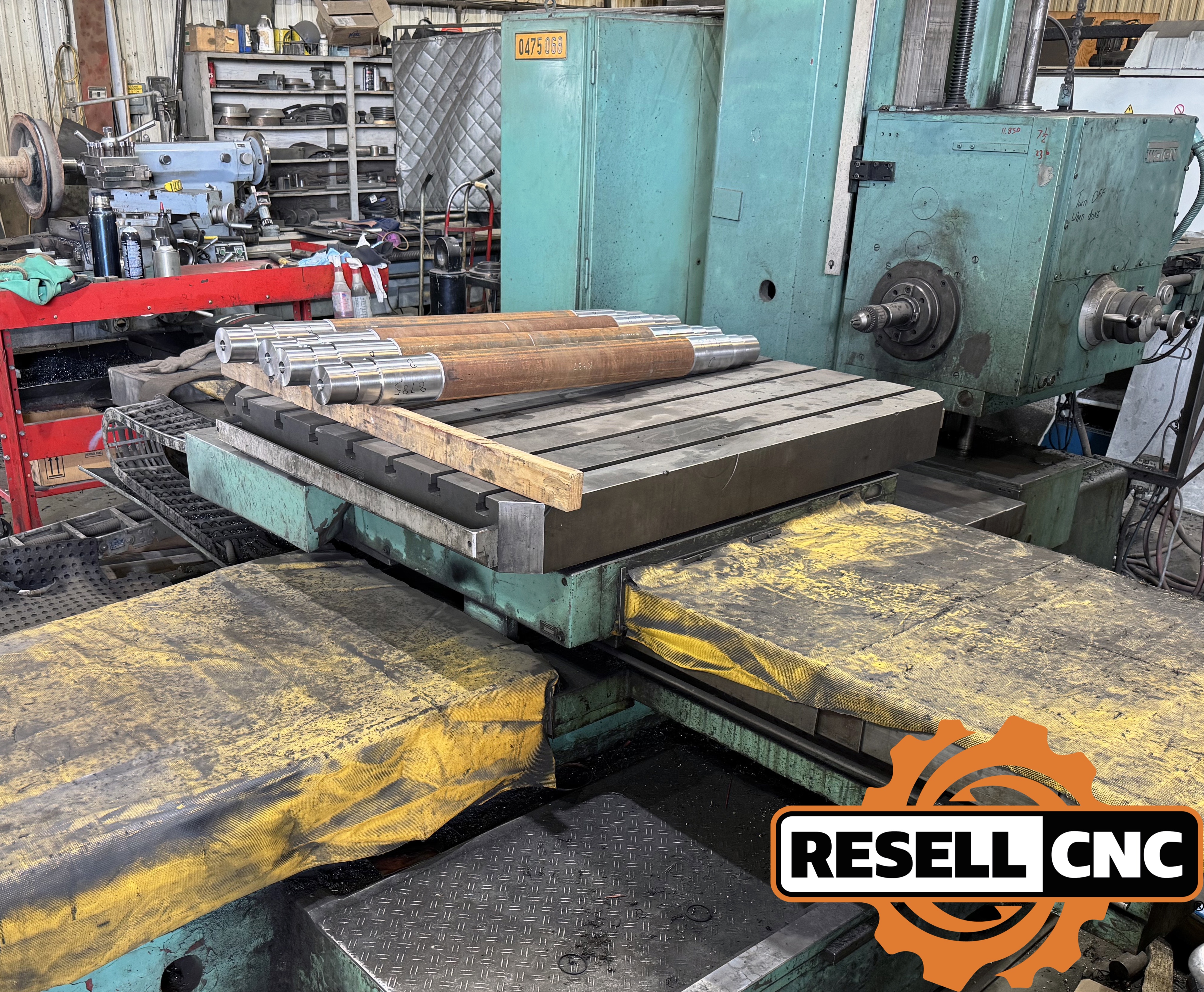

The Wotan B105 steps up to a 105mm (~4-inch) spindle, providing greater rigidity and cutting capacity for larger workpieces. The B105 is a production workhorse in aerospace, energy, and heavy fabrication shops. Heavier column and wider table accommodate more demanding operations while maintaining Wotan's signature precision.
B130 and B160 Series
The B130 (130mm spindle) and B160 (160mm spindle) are Wotan's largest boring mills, built for the heaviest workpieces and deepest bores. Typically found in power generation, mining equipment, and large-scale fabrication. They command strong prices on the used market in good mechanical condition.
Rapid Series
The Wotan Rapid series (Rapid 3, Rapid 5) was designed for faster cycle times on medium-duty boring and milling. These feature quicker traverse rates and streamlined tool changes compared to the standard B-series, popular in production settings where cycle time matters alongside boring accuracy.
Wotan Jig Boring Machines
Wotan manufactured precision jig boring machines for extremely accurate hole location, bore sizing, and contour work. These were standard equipment in tool and die shops and fixture manufacturing. Largely replaced by CNC machining centers in new installations, used Wotan jig borers remain in demand for specialized precision work where their inherent accuracy is hard to replicate on general-purpose machines.
How to Sell Your Used Wotan
Wotan boring mills hold lasting value thanks to heavy construction and continued demand for horizontal boring capacity. The B75, B105, and B130 see steady demand from shops needing large-envelope capability.
Resell CNC buys used Wotan boring mills, every model, every generation, nationwide.
- Contact us at (844) 478-8181 or sales@resellcnc.com.
- Free appraisal within 24 hours, no obligation.
- Accept the offer and we handle rigging, transport, and logistics.
Frequently Asked Questions About Used Wotan Machines
Are used Wotan boring mills reliable?
Yes. Wotan machines were engineered and built in Germany to high standards. Heavy cast-iron construction, hand-scraped ways, and precision spindle assemblies give them service life measured in decades. Many Wotan boring mills from the 1960s through 1980s remain in daily production today.
Is Wotan still in business?
Wotan is a legacy brand no longer in independent production. The company went through several ownership transitions, including becoming part of the Schiess group. New Wotan-branded machines are no longer manufactured, but a large installed base operates worldwide and parts remain available through aftermarket suppliers and specialty rebuilders.
Can I still get parts for a Wotan boring mill?
Yes. Aftermarket suppliers and HBM specialists stock common wear items (spindle bearings, gib material, way wipers, drive components). Many mechanical parts can be reverse-engineered when originals are unavailable. Shops specializing in HBM rebuilds are familiar with Wotan and can source or fabricate components as needed.
What should I inspect before buying a used Wotan?
Focus on spindle condition (runout, bearing noise, quill travel), way wear, backlash, table surface, and column rigidity. On CNC-retrofitted machines, verify control function on all axes and confirm retrofit documentation. A test cut under power is the best indicator of overall machine health.
What Wotan models hold their value best?
The B75 and B105 table-type boring mills are the most actively traded and hold steady resale values due to broad applicability. Machines with professional CNC retrofits (Siemens or Heidenhain) command significant premiums over manual configurations. Call (844) 478-8181 for current valuations.
What industries use Wotan boring mills?
Wotan machines serve aerospace (landing gear, structural parts), energy (turbine housings, valve bodies), shipbuilding (engine blocks, propulsion components), heavy equipment manufacturing, die and mold work, and general job shop applications requiring precision boring on large workpieces.
