Machining Monday

The DRO and the Bridge Between Eras

If you learned to cut metal on a manual mill with a DRO bolted to the side, this one is for you. You turned the handwheels, but you watched the numbers. You trusted the glass more than the dials, and you were right to.

Here's the part most machinists never think about: that little display did more than save you from counting turns. It quietly carried an entire generation of machinists across the line between the hand-cranked era and the digital one, without ever making them give up the machine they already trusted. The DRO was not a new machine. It was a bridge, and a lot of careers walked across it.

What the DRO Actually Was

Before the readout, position lived in your head and your hands. You zeroed a handwheel dial, counted turns and graduations, and tracked where the table sat by memory and arithmetic. Every move was a small act of bookkeeping, and the leadscrews fought you the whole time, because a screw and nut have backlash. Reverse direction and the dial moved before the table did. A good machinist learned to always approach a dimension from the same side to beat the backlash, and a tired machinist learned what it cost when he forgot.

The DRO replaced all of that with a number you could trust. A linear glass scale, etched with fine graduations, runs the length of each axis. An optical sensor reads those graduations as the table moves, counting them in a way that tracks direction as well as distance, and the display turns that count into a live coordinate. It is, in the language of encoders, a quadrature incremental optical scale. In the language of the floor, it is the truth about where the table is, no matter which way you came at it. The backlash in the screw is still there mechanically, but it no longer lies to you, because the scale measures the table, not the screw.

The Machine It Bolted Onto

To understand why the DRO mattered so much, you have to know what it bolted onto. By the 1960s, the manual knee mill in most American job shops was a Bridgeport Series 1. The company was founded in 1938 in Bridgeport, Connecticut by Magnus Wahlstrom, a toolmaker, and Rudolph Bannow, a patternmaker, two Swedish immigrants who had met in 1929. Bannow reportedly sketched the design in 1936, and the first machine was delivered in August 1939 to a casting company in Syracuse, New York. More than 330,000 Series 1 mills were built. It became the default mill of the American shop floor, the machine a whole trade learned on.

That ubiquity is the setup for the whole story. There were hundreds of thousands of these machines already installed, already paid for, already trusted, and already run by skilled hands. The question facing a small shop in the 1970s was not whether the Bridgeport was good. It was how to make it more accurate and more productive without throwing it out. The DRO was the answer that did not require throwing anything out.

What It Changed for the Operator

The change was not magic, and it was not a new spindle. It was the removal of error from the operator's job. With a DRO, you no longer counted dials, so the cumulative counting mistakes went away. You no longer fought backlash on every reversal, because the scale told you where the table actually was. Layout time dropped, because you could pick up an edge, zero the axis, and work in coordinates instead of laying out every hole with a height gauge and a scriber.

The most important change was repeatability. On a hand-cranked machine, the first part and the hundredth part were only as consistent as the operator's discipline through a long shift. With a DRO, the numbers did not get tired. The first part matched the hundredth because the position came off a glass scale, not off a count the operator was holding in his head at the end of a double shift. That is the gain that mattered, and it is the honest way to describe it: not that the machine got faster, but that it stopped letting fatigue and arithmetic into the part.

The handwheels still turned by hand. What changed is that the operator stopped being the measuring instrument. The glass scale took that job, and it never got tired.

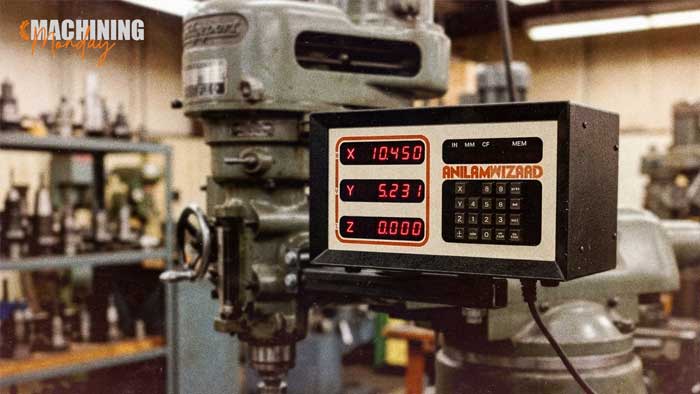

Who Built Them

The readouts came from a handful of names that machinists still recognize. Anilam was building digital readouts by the late 1960s. Sony brought its Magnescale technology to the floor in the early 1970s. Acu-Rite was on the market by the mid-1970s, with the trademark dating to 1974. These were the boxes that showed up clamped to the side of a Bridgeport, wired to scales running along the table and the knee. Acu-Rite and Anilam are both part of the HEIDENHAIN family of brands today, which is a quiet testament to how foundational that early readout technology turned out to be.

The Bridge Generation

Here is where the hardware story becomes a people story. The first numerically controlled machine ran at MIT in 1952, but NC stayed out of reach for most small shops for years. It was expensive, it was unfamiliar, and it asked a shop to bet its work on a technology nobody on the floor had grown up with. For a small job shop, jumping straight from hand-cranked manuals to NC was a leap across a canyon.

The DRO turned that canyon into a step. A machinist who had spent twenty years reading dials could now read coordinates, think in absolute and incremental positions, and work in a number system that looked a lot like the language CNC would later speak. He learned the digital habits of mind on the machine he already knew, at his own pace, without risking a job on a control he did not trust yet. When CNC finally became affordable enough for small shops, that same machinist was not starting over. He already thought in coordinates. He had been doing it for years on a manual with a box bolted to the side.

That is the bridge generation. They could run either platform, hand-cranked or computer-controlled, because the DRO had let them live in both worlds at once. They are the operators who could set up a manual Bridgeport for a one-off in the morning and run a CNC program in the afternoon, and never think of it as crossing a line, because for them the line had been erased one glass scale at a time.

Resell CNC Take

We still see DRO-equipped manual machines move through every week, and the people who buy them know exactly why. A manual with a good readout is the most flexible machine in a lot of shops, perfect for the one-off, the fixture, the repair that is not worth programming. The bridge the DRO built is still standing, and the machinists who learned to think in coordinates on a hand-cranked mill are still some of the best hires on any floor.

Frequently Asked Questions

What is a DRO (digital readout)?

A DRO is an electronic position display added to a manual machine tool that shows each axis position as a coordinate. A glass scale on each axis is read by an optical sensor that counts etched graduations, and the display reads position to a thousandth of an inch or finer, removing the need to count handwheel dials and eliminating leadscrew backlash from the operator's measurement.

How does a DRO work?

A linear glass scale etched with fine graduations runs along each axis. As the table moves, an optical sensor counts those graduations and tracks direction, a quadrature incremental optical encoder, and the readout converts the count into a live coordinate. Because the scale measures the table directly, leadscrew backlash no longer affects the displayed position.

Does a DRO turn a manual machine into a CNC?

No. A DRO only displays position. The operator still moves the axes by hand. A CNC moves the axes itself under program control. What the DRO does is let an operator work in coordinates on a manual machine, which is part of why it became a bridge toward CNC for a whole generation of machinists.

When did DROs become common on manual machines?

Through the late 1960s and the 1970s. Anilam was building digital readouts by the late 1960s, Sony Magnescale arrived in the early 1970s, and Acu-Rite was on the market by the mid-1970s, with its trademark dating to 1974. They were widely retrofitted onto manual Bridgeport mills already on shop floors.

What did a DRO change for a machinist?

It removed dial-counting and leadscrew backlash from the operator's job, cut layout time by letting the machinist work in coordinates, and made parts repeatable across a long run because position came off a glass scale rather than the operator's count. The first part matched the hundredth because the readout did not get tired.

Are DROs still used today?

Yes. DROs are still standard on manual mills and lathes and are still sold as retrofits. Manual machines with a good readout remain valuable for one-off parts, fixtures, and repairs that are not worth programming. Acu-Rite and Anilam, two of the original DRO names, are now part of the HEIDENHAIN family of brands.

Sources

1. Bridgeport (machine tool brand), Wikipedia.
2. Bridgeport Machines, Inc., VintageMachinery.org.
3. "Machine of the Month: Bridgeport Serial No. 1," American Precision Museum.
4. Digital readout, Wikipedia.
5. Acu-Rite Solutions, HEIDENHAIN Family of Brands.
6. Anilam digital readouts, Measurement Technologies.
