The Haas VR-8 and the Gimbal Head, a Different Way to Do 5-Axis

Picture a 5-axis machine in your head and you probably picture a trunnion. A cradle rocks the part one way, a table spins it the other, and a spindle pointing straight down cuts whatever the part is tilted to show it. That is the layout most people mean when they say 5-axis, and it is a good one for a huge range of work. But it has a quiet limit, and the Haas VR-8 is built around solving it.

Here is the part most machinists never think about: a trunnion has to tilt the part, which means it has to tilt everything bolted to the part too, the fixture, the vise, the whole load. That is fine for a part you can hold in one hand. It gets hard when the part is a big plate or a heavy mold that weighs as much as a car. At some point the thing you want to machine on five axes is simply too big and too heavy to keep tilting and spinning. So Haas built a machine that does not tilt the part at all. It tilts the tool.

Move the Tool, Not the Part

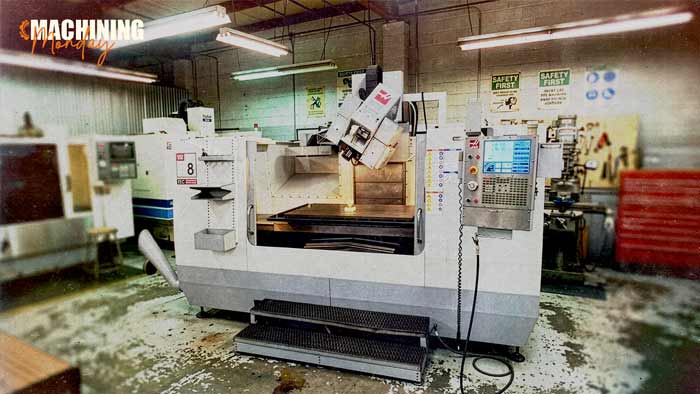

The VR-8 is a gimbal-head machine, sometimes called an articulating or gimballed spindle. Both of the rotary axes are built into the head, riding on the Z-axis, so the spindle can swing and rotate on its own. The workpiece just sits there, clamped flat on the table, never moving. The tool does all the tilting and turning to present itself to the part at whatever angle the cut needs. On the VR-8 that head gives roughly 120 degrees of tilt and 245 degrees of rotation, enough to reach undercuts, get behind features, and machine five sides of a part without unclamping it, all on a rigid HSK-A63 spindle taper.

That inversion is the whole idea. A trunnion machine asks the part to move so a fixed tool can reach it. A gimbal-head machine asks the tool to move so a fixed part can stay put. For small parts the trunnion is often the simpler answer, but the bigger and heavier the part gets, the more the gimbal head makes sense, because it is far easier to swing a spindle around a stationary plate than to keep flipping a plate that weighs a ton. The VR-8 was built for exactly that kind of large work, the molds, dies, and big structural parts that need five-axis access but cannot be treated like a small part on a rocking cradle.

A trunnion tilts the part to the tool. A gimbal head tilts the tool to the part. When the part is a heavy mold you cannot practically keep flipping, that difference is the entire reason the VR-8 exists.

Where the VR-8 Came From

Haas has always been the company that made machine tools more affordable, going back to a rotary indexer in the 1980s and the vertical mill that broke the price barrier in 1988. The VR series carried that same instinct into 5-axis. Full five-axis heads used to belong almost entirely to the premium European and Japanese builders, at prices that kept them out of the average shop. The VR machines put a real gimbal-head 5-axis machine within reach of shops that had never been able to consider one, which is a big part of why you still see them across mold shops and general fabricators rather than only in aerospace primes.

The VR series also comes in sizes, and the number tracks the machine's reach. The VR-8 sits in the middle of that range, with larger and smaller siblings around it, so a shop matches the number to the size of the parts it runs. It has been in the Haas line since the late 1990s and is still built today, which is why you find them across a wide span of years on the used market, from early machines to recent ones.

How the Head Changed Over Time

If you shop for a used VR-8, one detail is worth understanding, because the head was redesigned over the machine's life. The earlier VR generation used an A-axis mounted on a B-axis to carry the spindle, one rotary stacked on another in a particular order. The current version reworks that arrangement into a B-axis mounted on a C-axis. The two get to the same place, a spindle that can tilt and rotate, but the kinematics differ, and that affects how the machine is programmed, how the post processor is set up, and how a given angle is reached.

For a buyer, the practical takeaway is simple: confirm which generation a specific VR-8 is, and make sure your CAM and post match its head configuration. A 5-axis machine you cannot post to correctly is not doing 5-axis work. This is not a knock on either version, it is just the kind of thing that separates a smart used purchase from a surprise, and it is exactly the sort of detail worth checking before money changes hands.

What It Was Built to Do

Put the pieces together and the VR-8's purpose is clear. It is a large-envelope 5-axis machine for parts you want to clamp once and cut on every face, especially parts too big or heavy to tilt comfortably on a trunnion. Mold and die shops use that gimbal head to cut cavities and cores with deep, angled features. Fabricators and general shops use it for large plates and weldments that need holes and pockets at compound angles. The common thread is size: when the part is big, the machine that moves the tool instead of the part is the one that makes sense, and that is the lane the VR-8 was built for.

Resell CNC Take

The VR-8 is one of those machines that makes perfect sense once you understand the head. If you are cutting big molds or large plates on five axes, a gimbal head that keeps the part still is often the right tool, and the VR-8 puts that capability at a Haas price. When we take one in, we confirm the generation and head configuration, check the rotary axes and the spindle, and make sure the control and post situation is sorted. Tell us the parts you want to run and we will tell you whether a used VR-8 is the machine, and which generation fits your programming.
