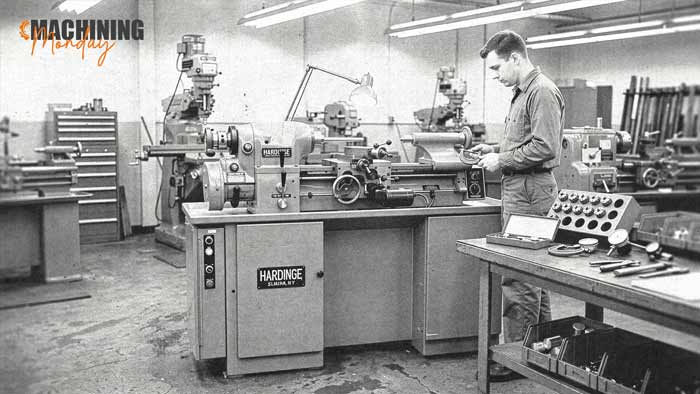

The Hardinge HLV-H: The Toolroom Lathe Machinists Still Call the Best Ever Built

You have run a lathe that fought you. One where you chased a tenth all afternoon, where the finish changed depending on how the day was going, where you only learned to trust the machine after you had wrestled it into behaving. Then one day you ran a Hardinge HLV-H, and it just did what you asked. No drama, no chasing. The number you wanted was the number you got, and you got it again on the next part.

Here is the part most machinists never think about: that feeling is not nostalgia, and it is not luck. It was engineered into the machine on purpose, more than sixty years ago, and it is the reason a lathe designed before most of us were born is still the one a lot of toolmakers would reach for first today. This is the story of how Hardinge built a lathe that never went out of date.

A Lathe Built to Fill a Gap

Hardinge started developing the machine in the mid 1940s as a replacement for its popular T-10 toolroom lathe. The HLV arrived around 1950, and in 1960 the HLV-H replaced it and became the version people still talk about. The design brief was specific: fill the gap between a plain precision bench lathe, which was accurate but light, and a heavy engine lathe, which was rigid but not built for tenths. Hardinge wanted a machine a toolmaker could run all day and trust for close work, without babying it and without fighting it.

That focus is why the HLV-H feels different from a general-purpose lathe. It was not trying to be everything. It was built to do precise turning on small and mid-size work, over and over, and hold the number every time. A machine designed around one job, done to a standard, tends to age better than a machine designed to do a little of everything, and the HLV-H is the proof.

The Bed, and the Coin on the Headstock

Start with the bed, because that is where accuracy lives or dies. Where an older design used a split bed profile, Hardinge went to a solid, wide, hardened dovetail bed. That gave the carriage and the tailstock full contact on their locating surfaces, which does two things: it makes the machine stiffer under a cut, and it dramatically slows the wear that turns a precise lathe into a sloppy one over the years. A hardened bed with full contact is a machine that holds its geometry decades later, and that is a big part of why used HLV-H lathes are still worth buying.

Then there is the story every machinist has heard about this lathe. Balance a coin on edge, or stand it on the round top of the headstock, start the spindle, and take a moderate cut. The coin does not walk off. Whether or not you have seen it done, the point behind the story is real: the HLV-H runs so smoothly, with so little vibration, that the surface finish it leaves is a product of the machine itself, not the operator fighting chatter. Smoothness like that is not a trick. It is rigidity, balance, and a spindle built to a standard most lathes of its day could not touch.

The Spindle Is the Whole Point

On a super-precision lathe the spindle is the machine, and this is where Hardinge's history shows. The company started in 1890 making precision collets, the parts that grip the work and decide whether it runs true before the tool ever touches it. Decades of doing nothing but precision workholding went straight into the HLV-H spindle.

It is a preloaded 5C collet spindle, and the preload is the secret. By loading the bearings against each other, Hardinge took the end play and radial play out of the system, so the spindle cannot rock or drift under load. Hardinge quoted spindle runout at around 25 millionths of an inch, .000025 inch, tight enough that on most work the limit on your part is you, not the machine. A fast lever-operated collet closer lets an operator load part after part without losing that concentricity. Grip true, spin true, cut true, part after part. That is the HLV-H in one line.

Hardinge did not build the best lathe of 1960. It built a lathe so right that sixty years of newer machines are still measured against it.

The H Is for High Speed

The name itself tells you something most people miss. HLV was the base super-precision lathe. The H that Hardinge added marks the high-speed version, and the company's own literature backs it up: the service manual is titled the High Speed Super-Precision, and the sales brochures called it a high speed toolroom lathe. The upgrade was a continuously variable spindle drive running from 125 to 3,000 rpm, so a machinist could dial the exact surface speed a job wanted, from slow and heavy on a big diameter to fast and fine on a small one, without stopping to swap belts or gears.

That variable-speed spindle, driven by a modest 5 horsepower, is a big part of why the HLV-H feels so controllable. It is backed by a dual gearbox for precision threading with a quick-change range of standard threads, and infinitely variable feeds for fine control of finish. None of it is flashy. It is a toolmaker's toolbox, built so the person at the handwheel can put the cut exactly where they want it, which is the entire job of a toolroom lathe.

Why It Never Went Out of Date

Most machines are a product of their era. They are as good as the tolerances, materials, and demands of the year they were designed, and a decade later something better comes along. The HLV-H did not follow that curve, because it was built to a standard rather than to a spec. The bed, the spindle, and the balance were made as good as Hardinge knew how to make them, not just good enough for 1960, and that ceiling turned out to be high enough that it still clears the bar today.

That is why the HLV-H stayed in production for more than sixty years, and why a well-kept used one still holds tenths on a toolroom bench. It is also why the phrase you hear around these machines is not that it was great for its time, but that it is simply the finest toolroom lathe ever built. Machinists do not hand that kind of reputation to a machine out of sentiment. They hand it to the one that never let them down.

Resell CNC Take

An HLV-H is one of the few machines where buying used is not a compromise, it is the smart move, as long as you buy the condition. The spindle and the bed are the whole machine, so check the spindle for runout and the bed and ways for wear before anything else. A clean, well-kept example will still outwork lathes built decades later, and it holds its value the way few machines do. Buy a tired one and you inherit an expensive rebuild. Buy a good one and you own a standard.

Frequently Asked Questions

What is the Hardinge HLV-H?

The HLV-H is Hardinge's super-precision toolroom lathe, built in Elmira, New York, and introduced in 1960 as an evolution of the HLV. It combines a hardened, solid dovetail bed with a preloaded 5C collet spindle, and is widely considered one of the finest toolroom lathes ever made.

When was the Hardinge HLV-H made?

Hardinge began developing the machine in the mid 1940s to replace its T-10 toolroom lathe. The HLV appeared around 1950, and the HLV-H replaced it in 1960. The design stayed in production for more than sixty years, which is part of why so many are still in service.

Why do machinists consider the HLV-H the best toolroom lathe?

Because it holds accuracy over a long service life. The hardened, full-contact bed resists wear, the preloaded spindle runs with very little runout and vibration, and the whole machine was built to a precision standard rather than to a price. The result is a lathe that still holds tight tolerances decades after it was built.

How accurate is the HLV-H spindle?

Hardinge quoted spindle runout for the HLV-H at around 25 millionths of an inch (.000025 inch TIR). The preloaded 5C collet spindle eliminates end play and radial play, so on most work the accuracy limit is the operator and the tooling rather than the machine.

What is the difference between the HLV and the HLV-H?

The HLV came first, around 1950, and the HLV-H replaced it in 1960 as a refined version that became the definitive model. The H version is the one most machinists mean when they talk about the legendary Hardinge toolroom lathe, and it is the one that stayed in production for decades.

Is a used Hardinge HLV-H worth buying?

Often yes, if the condition is right. Because these lathes hold accuracy for decades, a clean, well-maintained used HLV-H can outperform much newer machines and hold its value. The key checks are spindle runout and bed and way wear, since those decide whether the precision is still there.
