Henry Maudslay: The Man Who Invented Precision Itself

You trust your machine to hold a tenth. You grab a bolt out of the bin and it threads straight into the part without a thought. You call out a dimension and everyone in the shop knows exactly what it means, down to the ten-thousandth. That whole world, interchangeable, measurable, repeatable, is the water you swim in, and it is so basic you never question it.

Here is the part most machinists never think about: none of it existed until one man built it. Before Henry Maudslay, precision was not a property of machines. It lived in the hands and eyes of a few gifted craftsmen, and it died with them. Maudslay took precision out of the hands and put it into the machine, and in doing so he invented the foundation everything you run today is standing on. This is his story.

A World Without Precision

It is hard to picture now, but before the year 1800, there was no such thing as a standard screw. Every threaded fastener was cut by hand, by eye, one at a time. A nut fit exactly one bolt, the one it was made with, and if you lost it you started over. Two machinists making the "same" part made two different parts. Accuracy was a personal talent, not a repeatable process, and there was no agreed way to even measure how close you had come.

Maudslay was born in Woolwich in 1771 and went to work at the Royal Arsenal at twelve, first carrying powder, then in the blacksmith shop, where he showed a rare feel for metal. That feel, combined with a mind that wanted everything square, flat, and true, set him on a lifelong campaign against the one thing every shop of his day accepted as normal: that no two parts could ever be exactly alike.

The Slide Rest: Precision Leaves the Hand

Maudslay's greatest idea sounds almost too simple. On a lathe of his day, the cutting tool was held by hand, braced against a rest, and guided by the skill and steadiness of the turner. The quality of the part was the quality of the operator's hands on that day. Maudslay clamped the tool into a slide instead, a rigid carriage that moved along the work driven by a leadscrew and a handwheel, so the tool advanced smoothly, straight, and by a controlled amount, no matter whose hands were on it.

Read that again, because it is the whole revolution. The slide rest took precision out of the operator and built it into the machine. A steady hand became a mechanism. Skill became a setting. That single move, mechanizing the path of the tool, is the founding principle of every machine tool that has existed since, right up to the CNC in your shop, which is nothing more than Maudslay's idea with a computer deciding where the slide goes.

The Screw-Cutting Lathe and the Birth of Interchangeability

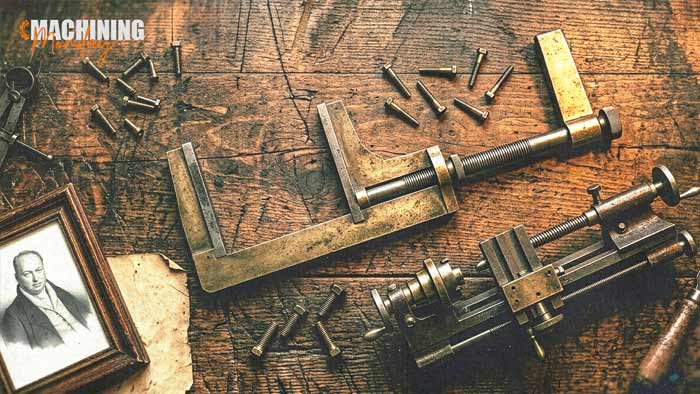

Around 1800, Maudslay put the slide rest together with a precise leadscrew and built a screw-cutting lathe that could cut a thread to a repeatable pitch, again and again. For the first time, screws could be made to a standard rather than one at a time, which meant a nut could fit any bolt of the same thread, not just its own. That is interchangeability, and it is the quiet miracle underneath all of modern manufacturing. Every time you grab a fastener and it just works, you are cashing a check Maudslay wrote two centuries ago.

The idea did not stop with him. His apprentice Joseph Whitworth took standardized threads and turned them into a national system, the first widely adopted screw thread standard, which is why standardization stuck. But the machine that made it possible, the one that could cut the same thread twice, came off Maudslay's bench.

Maudslay did not make parts more accurate. He made accuracy repeatable, measurable, and transferable to anyone with the machine. That is the difference between a craft and an industry.

The Lord Chancellor

You cannot hold a tolerance you cannot measure, and Maudslay understood that better than anyone of his time. He built a bench micrometer accurate to a ten-thousandth of an inch, about sixteen inches long with two flat measuring jaws and a horizontal screw, and he kept it as the final word in his shop. When two of his men argued over a measurement, the dispute went to the micrometer, and whatever it said was the truth. Maudslay called it The Lord Chancellor, because it settled every case.

That is a bigger deal than it sounds. A shop that shares one trusted standard of measurement is a shop where everyone can work to the same number and expect their parts to fit. The Lord Chancellor was not just a tool, it was the idea that measurement itself should be objective and shared, not a matter of opinion. Every gage block, every calibrated mic, every CMM in a climate-controlled room is downstream of a man who named his reference instrument after a judge.

Ten Men Doing the Work of a Hundred

From about 1801 to 1808, Maudslay built a series of machines with Marc Brunel for the Portsmouth Block Mills, making the wooden pulley blocks the Royal Navy needed by the tens of thousands. The machines were purpose-built and worked in sequence, and the result was staggering for the time: ten unskilled men could do the work that had taken a hundred and ten skilled craftsmen. It was one of the first true examples of mass production off of dedicated machine tools, the ancestor of every production line since.

The lesson in it is the same one shops still live by. When accuracy is built into the machine instead of the worker, you no longer need a rare master at every station. You need the machine to be right, and people to run it. Maudslay proved that two hundred years before the labor conversation your shop is having today.

The School He Left Behind

Maudslay's machines changed the world, but his people may have changed it more. His shop became one of the finest schools of engineering in Britain, and the men who trained under him read like a founding roster of the industry. Joseph Whitworth standardized the screw thread and pushed measurement to new limits. James Nasmyth invented the steam hammer. Richard Roberts and Joseph Clement carried his standards of accuracy into their own famous work. Maudslay taught them all the same gospel: make it flat, make it true, measure it honestly, and build the accuracy into the machine. That gospel outlived him and became the trade.

Resell CNC Take

Every machine we buy, sell, and appraise is a descendant of Maudslay's one idea, that a machine can be trusted to be right. When our appraisers check a spindle for runout or a way for wear, they are measuring how well a given machine still lives up to the standard he set: accuracy built in, not held by hand. It is worth remembering, the next time a CNC snaps to a coordinate and holds it, that the whole reason it can is a blacksmith's son who refused to accept that no two parts could ever be the same.

Frequently Asked Questions

Who was Henry Maudslay?

Henry Maudslay (1771 to 1831) was an English engineer regarded as the father of machine tool technology. He built the first industrially practical screw-cutting lathe, perfected the slide rest, kept a bench micrometer he called The Lord Chancellor, and trained the engineers who built the machine tool industry, including Joseph Whitworth and James Nasmyth.

What did Henry Maudslay invent?

His key contributions were the practical slide rest, which built the cutting tool's accuracy into the machine rather than the operator's hand, and an accurate screw-cutting lathe that made standardized, interchangeable screw threads possible. He also built a high-accuracy bench micrometer and, with Marc Brunel, the machines for the Portsmouth Block Mills.

Why is Maudslay important to machining?

Before Maudslay, precision depended on individual craftsmen and every part was unique. By building accuracy into the machine through the slide rest and enabling interchangeable threads, he turned precision from a personal craft into a repeatable industrial process. Every modern machine tool, including CNC, descends from that idea.

What was The Lord Chancellor?

The Lord Chancellor was Maudslay's bench micrometer, accurate to about a ten-thousandth of an inch. He used it as the final authority on measurement in his shop, settling any dispute over a dimension, which is why he named it after a judge. It reflected his belief that measurement should be objective and shared.

What were the Portsmouth Block Mills?

The Portsmouth Block Mills used machines Maudslay built with Marc Brunel between about 1801 and 1808 to mass-produce wooden pulley blocks for the Royal Navy. Ten unskilled workers could do the work of a hundred and ten skilled craftsmen, making it one of the earliest examples of mass production using dedicated machine tools.

Who did Henry Maudslay train?

Maudslay's shop trained a remarkable generation of engineers, including Joseph Whitworth, who standardized the screw thread, James Nasmyth, who invented the steam hammer, and Richard Roberts and Joseph Clement. His influence as a teacher of precision is often considered as important as the machines he built.
