Indexable Inserts and the End of Grinding Your Own Tools

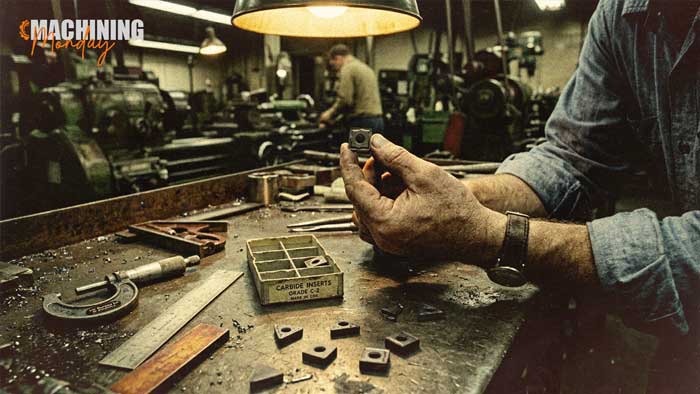

Everything about how you change a worn edge was decided in 1957, by a Swede most machinists have never heard of. You pull an insert out of a box, clamp it in the holder, run your edges, flip it to the next corner, and toss it in the bin when it's done. That whole routine, the one you do without thinking, started with one man and one tool holder.

Here's the part most machinists never think about: before him, a dull tool meant a trip to the grinding wheel, not the parts bin. And that trip was the job.

What Tool Grinding Actually Was

Before 1957, a machinist ground his own tools, or the shop was big enough to pay a dedicated tool-and-cutter grinder to do nothing else. High-speed steel was the tooling of the day, and HSS does not arrive ready to cut. You ground the rake, the relief, the nose radius. You read the material, decided the geometry, and put it on the tool by hand against a wheel. Then you cut until the edge went dull, and you walked back to the grinder and did it again.

That skill was not a bonus. It was the price of admission. A man who could not grind a good tool could not hold a job at the machine, because half the day was spent maintaining the thing that did the cutting. Speeds and feeds stayed low because HSS could not take the heat, and every regrind was downtime measured in the same hours the part was supposed to be running.

It was also how the trade was learned. An apprentice spent months at the grinder before he was trusted on a good part, because the wheel was where you proved you understood geometry. You could not fake a rake angle you did not understand. The relief either cleared or it rubbed, the edge either held or it folded, and the wheel told you the truth every time. Grinding was the filter that separated the machinist from the helper, and a shop's reputation rode partly on how its men ground steel.

Carbide Came First, and It Still Got Ground

Here is the wrinkle most people miss: carbide did not arrive with the insert. Cemented tungsten carbide had been cutting metal since the late 1920s, brazed onto the end of a steel shank as a hard tip. It ran faster than high-speed steel and held an edge through heat that would have wrecked HSS. By the 1940s and early 1950s, brazed carbide tooling was common in serious shops.

But a brazed carbide tool was still a tool you maintained. When the edge dulled, you took it to a wheel, and now the wheel had to be silicon carbide or diamond because ordinary aluminum oxide would not touch the carbide tip. So the shop that moved to carbide for the speed inherited a harder, slower, more expensive grinding problem. The material had changed. The daily ritual at the wheel had not. You were still standing there, still shaping an edge by hand, just on a tip that fought back harder.

That is the backdrop the throw-away insert walked into. The real breakthrough in 1957 was not the carbide. It was the decision to stop grinding it at all.

1957 and the Throw-Away Tool

In 1957, Sandvik Coromant introduced the first mechanically clamped indexable inserts, built around the T-Max holder. They did not call them indexable inserts. They called them throw-away inserts, and that name tells you exactly how radical the idea was. In November of that year, Sandvik's president, Sven Wirfelt, carried the T-Max to the United States to demonstrate it in person. No competitor had anything like it, and none would for years.

The pitch was simple and, to a man raised on grinding, almost offensive: stop shaping tools. Buy a carbide tip with the geometry already pressed and sintered into it. Clamp it in the holder. When the edge wears, do not grind it, rotate it to the next edge. When every edge is gone, throw the whole tip away and clamp in a new one. The holder never changes. The skill of grinding geometry by eye becomes a thing you no longer need.

You ground your tool, you owned it, you knew it. Being told to flip the edge and throw the old one in the bin felt like waste, even when the math said it was the cheapest thing in the shop.

That feeling is the human story buried inside the history. The resistance was real. Adoption was not instant. Inserts spread through turning in the 1960s and across production shops by the 1970s, but smaller job shops and legacy machines held on to HSS and the grinder for years, partly because the tooling was a real investment and partly because throwing away a cutting edge offended men who had spent a career making them.

The objection was not only sentimental, and that is worth being fair about. A box of inserts and a holder was money up front, and a small shop that had already paid for a bench grinder and a man who knew how to use it did not see why it should pay twice. On a machine running one or two parts a week, the math did not obviously favor the insert. The case for throwing edges away got stronger the more parts you ran, which is exactly why the production shops converted first and the one-man shops converted last. The technology did not win on principle. It won account by account, wherever the volume made grinding time the expensive thing.

What It Did to the Job

Once the resistance broke, the job changed shape. The tool-and-cutter grinder position, a fixture in shops for generations, largely disappeared. The hours a machinist used to spend at the wheel went back into spindle time. Carbide took heat that HSS never could, so speeds and feeds climbed, and the same machine started turning more parts per shift than it ever had.

The cost of tooling did not vanish, it moved. It went from labor heavy, the grinding time and the grinder's wage, to a consumable line on the purchase order. Shops traded a skill they had to train and retain for a part they could buy by the box. Uptime went up, output went up, and the machinist was freed to do the thing the title actually names: machine parts, not maintain tools.

It is worth sitting with how complete the change was. An entire core competency of the trade, grinding your own tools, went from mandatory to obsolete inside about twenty years, and the machinists who came after inherited a job that had quietly dropped half of what it used to require. The skill did not get easier. It moved. The judgment that used to live in grinding geometry now lives in reading the insert catalog, matching grade and chipbreaker to the material, and knowing when an edge is done.

And that catalog is not small. The same system that freed you from the wheel handed you a different problem: choosing correctly from thousands of geometries, grades, coatings, and chipbreakers, each tuned for a material and a cut. The old machinist proved himself by grinding one good edge. The modern one proves himself by knowing which of forty inserts on the shelf belongs in the holder for this steel, this depth, this finish. The insert did not remove the skill from the job. It traded a skill of the hand for a skill of the read, and a machinist who picks the wrong grade still scraps the part, he just does it faster now.

That Swede was named Sven Wirfelt. He got on a plane in 1957, and the parts bin next to your machine has been filling up with thrown-away edges ever since.

Frequently Asked Questions

What is an indexable insert?

An indexable insert is a replaceable carbide cutting tip that clamps mechanically into a tool holder. When one edge wears, the machinist rotates the insert to a fresh edge instead of regrinding the tool. When all edges are spent, the insert is discarded and the holder stays in service. A typical insert carries two to eight cutting edges.

When were indexable inserts invented?

Sandvik Coromant introduced the first mechanically clamped indexable inserts in 1957 with the T-Max holder, originally marketed as "throw-away inserts." Sandvik president Sven Wirfelt demonstrated the T-Max in the United States that November. The design had no direct competitor for years.

How did machinists make tools before indexable inserts?

Before 1957, machinists ground their own high-speed steel tools by hand, or shops employed dedicated tool-and-cutter grinders. The machinist ground the rake, relief, and nose geometry against a wheel, then reground the edge each time it dulled. Tool grinding was a core, daily skill and a requirement for the job.

Why did indexable inserts replace ground tooling?

Inserts ended regrinding downtime and let carbide run at speeds and feeds that high-speed steel could not survive, raising output per machine. Tool cost shifted from grinding labor and the grinder's wage to a consumable the shop buys by the box. Uptime rose and the machinist was freed to cut parts instead of maintaining tools.

Do machinists still grind their own tools today?

Some do for specialty form tools, single-point threading, and small or legacy shops, but for everyday turning and milling, indexable inserts dominate. Indexable tooling now accounts for the majority of U.S. turning and milling tool sales, and tool grinding has gone from a mandatory trade skill to a niche one.

Were carbide tools used before indexable inserts?

Yes. Cemented tungsten carbide was cutting metal from the late 1920s, brazed onto a steel shank as a hard tip that ran faster than high-speed steel. But brazed carbide still had to be reground when it dulled, using silicon carbide or diamond wheels because ordinary abrasive would not cut it. The 1957 indexable insert kept the carbide and removed the grinding, which was the actual breakthrough.
