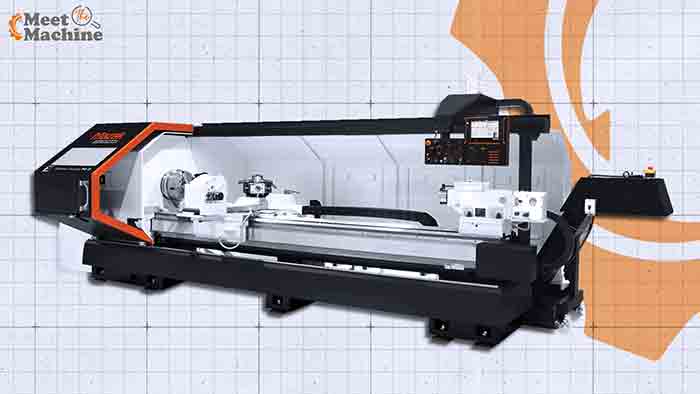

Used Mazak M-5 : Big Bore, Long Bed, Mazatrol Simple | Meet the Machine

When the part is a length of pipe, a long shaft, or a big-bore fitting, most turning centers are the wrong machine. A small chucker cannot pass the bar, a multi-tasking center is expensive overkill, and a manual flat-bed lathe is slow and only as accurate as the operator. The Mazak M-5 was built for exactly that gap: a long, heavy flat-bed lathe with a big spindle bore, programmed through Mazatrol at the machine, so a shop can run large and long work accurately without a CAM seat and without tying up a master machinist for a shift.

This is a working machinist's breakdown of the M-5 for the person about to spend real money on a used one: where it comes from, what defines it, what the M-5 family costs today, and exactly what to check before you buy.

Where the M-5 Comes From

Mazak, formally Yamazaki Mazak, was founded in 1919 and is one of the largest and broadest machine tool builders in the world, with North American headquarters and manufacturing in Florence, Kentucky. The company introduced its Mazatrol conversational control in 1981, letting machinists program at the machine, and that control became a signature carried across its whole range. The M-5 is the big-bore flat-bed lathe in that lineage, built to bring Mazatrol simplicity to large and long turning.

The M-5 has been in service for decades, from early 1980s machines through later M5N versions, which tells you two things a used buyer cares about. First, it is a proven design: a machine that has been running oil-country and long-shaft work in shops for forty years is not going to surprise anyone. Second, the installed base is large, so parts, operators who know Mazatrol, and service are all available. The M-5 is the kind of machine shops buy used precisely because it is well understood.

For a used buyer, the Mazak support story is the anchor. The brand runs one of the densest parts and service networks in North America from Florence, Kentucky, and Mazatrol skills transfer across the whole line. A used M-5 is backed by a manufacturer that is not going anywhere, which is what protects uptime and resale, and it is exactly the kind of machine Resell CNC trades as North America's only Official Mazak Trade-In Center.

What Defines the Machine

The big bore. A spindle bore offered up to 7.1 inches is the defining feature and the reason a shop chooses an M-5. It lets long bar and oil-country tubular pass through the headstock, work that a standard chucker simply cannot take.

The long flat bed. Roughly 24 inches of swing over the bed and center distances from about 78 to 122 inches, depending on the length variant, let the M-5 turn long shafts and large parts. The flat-bed design is rigid and accessible for big work and for loading with a crane.

Mazatrol control. The M-5 runs Mazak's Mazatrol conversational control, so common turning, facing, and threading operations are programmed at the machine. An operator who knows Mazatrol is productive immediately, and there are a lot of them, which is part of why the machine is easy to staff and resell.

Built to be supported. As a long-running Mazak design with a large installed base and a dense service network, the M-5 is straightforward to keep running. Parts and Mazatrol expertise are available, which is not something every big-bore lathe can claim.

The M-5 Family in Shop Language

M5-2500. The shorter-bed variant, with a center distance around 100 inches, for long shaft and tubular work that does not need the full length. A common, versatile size.

M5-3000. The longer-bed variant for the longest parts, with greater center distance for extended shafts, pipe, and bar work.

M5N. The later-generation M-5, commonly found with the 7.1 inch big bore and a newer Mazatrol control such as the Fusion 640T. These are the most current and carry a premium over early machines.

Bore and control options. Across the family, the spindle bore (standard versus the 7.1 inch big bore) and the Mazatrol generation are the variables that most define a given machine, more than the model name alone. Identifying both is the first step in valuing one.

All M-5 machines share the same big-bore, long-bed, Mazatrol-programmed concept, so the choice comes down to bed length, bore size, and control generation.

The Problem It Was Built to Solve

Long, large-diameter turning has always been an awkward fit for standard machines. A chucking turning center is fast but cannot pass long bar or big tubular through its spindle. A multi-tasking center can do it but costs far more than the work justifies when the job is straightforward turning. A manual flat-bed lathe handles the size but is slow and leans entirely on operator skill for accuracy and repeatability. The M-5 was built for the shop caught in that gap, the one running oil-country tubulars, long shafts, rolls, and large fittings in varied quantities. The big bore takes the work, the long bed supports it, and Mazatrol lets the operator program it at the machine quickly and repeat it accurately. That combination, big-bore long turning with conversational programming and real factory support, is the entire reason the M-5 has stayed in shops for decades.

U.S. Service and Support

Mazak's North American operations are headquartered in Florence, Kentucky, with technology centers and one of the densest parts and service networks in the industry. For a used M-5 buyer that footprint is a major part of the value: a big-bore spindle, a long bed, and a Mazatrol control are only worth what you can keep running, and Mazak keeps parts, service, and applications help within reach. Mazatrol skills are common in the workforce, so the machine is easy to staff. Resell CNC's Official Mazak Trade-In Center status reflects that same ecosystem and is part of why used Mazak machines move and hold value. Confirming the specific Mazatrol generation is supportable for the machine you are buying is still part of the diligence.

How It Compares

Each one has a real argument. The Weiler E90 is the German-precision alternative, strong when at-the-machine cycle programming and toolroom accuracy on large parts are the priority, at a higher price. A Romi C-series is the heavy-duty value option for rugged big-bore turning at the lowest cost. A DN Solutions Puma in a big-bore configuration is a rigid modern production turning center on familiar Fanuc controls. The Mazak M-5 wins the order when the priority is proven, well-supported big-bore long turning that is easy to staff and easy to resell, with Mazatrol programming most shops already know and the deepest service network of the group behind it. For a shop that wants a dependable big-bore lathe rather than a project, the M-5 is exactly that.

A chucker cannot pass the pipe and a manual lathe is too slow. The M-5 takes the big bore and lets you program it at the machine.

What the M-5 Family Costs on the Used Market

The M-5 holds value as proven, supportable big-bore turning, and pricing tracks the Mazatrol generation, the spindle and bore condition, and the bed length more than calendar age. As a rough guide to current secondary-market activity:

Early 1980s and 1990s M-5 machines: often the high four figures into the low five figures, especially on older Mazatrol controls and standard bores, sometimes sold as-is or with servo and control updates.

Clean, running M5-2500 and M5-3000: generally the mid five figures, more with the 7.1 inch big bore and a healthy spindle.

Later M5N with Fusion-era Mazatrol and big bore: the top of the family, into the high five figures, for the newer control and the most demanded configuration. Bed length, bore size, and included steady rests and chucks move the number, and many sell at auction or as request-price, so the real figure comes down to a careful read of the specific machine.

What to Check Before You Buy

Spindle and bore. Indicate spindle runout at the nose and through the bore, and listen for bearing noise at low, mid, and high RPM. On a big-bore machine confirm the actual bore size and that it is clean and true, since oil-country machines pass a lot of material through it.

Mazatrol generation. Identify the control, from early Mazatrol T and M-Plus through Fusion 640T and later, since it drives features, parts, programming, and resale. Confirm it boots, all axes home, and there are no drive faults, and get parameter backups.

Ways, ballscrews, and the long bed. Inspect the flat-bed ways for wear and scoring along the full length and measure X and Z backlash under reversal. On a long bed, wear and lube neglect often show toward the ends and on the heavily used section near the chuck.

Turret and tooling. Index the turret through every station and check repeatability and clamping, and confirm the toolholders and any tooling that convey with the machine.

Tailstock and steady rests. On long-part turning the tailstock alignment and the steady and follow rests are essential. Verify alignment, that the rests are present, and that they fit your diameters.

Chuck and hydraulics. Confirm the chuck opens and closes smoothly under full hydraulic pressure with sound jaws, and check the hydraulic system for leaks and pressure stability.

Servo and control history. Older M-5 machines are sometimes sold with new servomotors or control updates. A documented servo or Mazatrol refresh is worth paying for and changes the value, so ask what has been done.

Support path. Confirm the Mazatrol generation and parts are realistically supportable before you commit, which is straightforward given Mazak's network.

Who Actually Runs Them

You find the M-5 wherever big-bore, long turning is the work. Oil and gas shops run them on tubular joints, couplings, and downhole components through the big bore. Energy, heavy-industry, and roll shops run them on long shafts and rolls. General and contract shops run them on large turned parts that will not fit a chucker, and maintenance and MRO departments run them to make and repair big shafts on demand. The common thread is a shop that needs dependable, well-supported big-bore turning of long and large parts, with a control its operators already know.

Resell CNC Take

The M-5 is one of the most practical big-bore lathes on the used market, and as North America's only Official Mazak Trade-In Center, it is a machine we know well. The deal comes down to the spindle and bore, the Mazatrol generation, and the steady rests, and on the older machines, whether the servos or control have been refreshed. A clean M5-2500 or M5N with a healthy big bore, a working Mazatrol, and its rests is dependable, easy to staff, and easy to resell. We read exactly that for buyers, and these often come through at auction.

Frequently Asked Questions

What is the Mazak M-5?

The Mazak M-5 is a big-bore, flat-bed CNC lathe for long and large-diameter turning, with about 24 inches of swing over the bed, a spindle bore offered up to 7.1 inches, and center distances from roughly 78 to 122 inches by bed length. Sold as the M5-2500, M5-3000, and M5N, it runs Mazak's Mazatrol conversational control and is widely used for oil-country tubular, long shaft, and large-part work.

What is the spindle bore on a Mazak M-5?

The M-5 is commonly offered with a big-bore spindle up to 7.1 inches, alongside smaller standard bores. The big bore is the defining feature, letting long bar and oil-country tubular pass through the headstock, so confirming the actual bore on a given machine is a key step in valuing it.

What control does the M-5 use?

The M-5 runs Mazak's Mazatrol conversational control, with the generation depending on vintage, from early Mazatrol T and M-Plus on 1980s and 1990s machines through Fusion 640T and later on M5N machines. The Mazatrol generation strongly affects features, parts, and resale.

What does a used Mazak M-5 cost?

As a rough guide, early 1980s and 1990s machines often run from the high four figures into the low five figures, clean running M5-2500 and M5-3000 machines run in the mid five figures, and later M5N machines with Fusion-era Mazatrol and the 7.1 inch big bore reach into the high five figures. Bore, control, bed length, and rests drive the number, and many sell at auction.

How does the M-5 compare to a Weiler E90 or a Romi?

A Weiler E90 is the German-precision alternative with at-the-machine cycle programming, and a Romi C-series is the heavy-duty value option. The M-5's edge is being proven, easy to staff with common Mazatrol skills, and backed by the deepest service network of the group, which makes it the low-risk choice for dependable big-bore turning.

Are used Mazak M-5 lathes a good buy?

They can be a strong value as proven, supportable big-bore turning. The keys are the spindle and bore condition, the Mazatrol generation, the long-bed way and ballscrew wear, the steady rests, and on older machines whether the servos or control have been refreshed.
