What to Look for When Buying a Used Hwacheon
Hwacheon machines use in-house Meehanite castings, in-house spindles, and (on Hi-TECH and larger Sirius models) hand-scraped box ways. Here’s what to inspect.
On Hi-TECH and Cutex turning centers, check spindle, turret, and ways. Measure runout at the A2 nose and listen for bearing noise across the RPM range. Verify the BMT turret indexes cleanly, seats on its curvic coupling, and clamps to spec. On live-tooling and Y-axis models (230BL-YSMC, 180B-YSMC, 240SY), test every driven station and the sub-spindle handoff. Inspect hand-scraped ways and telescoping covers on Hi-TECH units. On older Hi-ECO lathes running Fanuc 18T, back up parameters before any battery service to avoid grid-shift reset.
On Vesta and Sirius machining centers, verify spindle, ATC, and thermal behavior. Test spindle runout and oil-cooler function after warm-up. The Vesta 1000 belt-pulley 12,000 rpm spindle is a known rebuild item under heavy use, so ask about service history. Cycle the tool changer through every pocket. On Sirius U-series with 45,000 rpm built-in motor spindles, confirm warm-up routines. On M and D-series 5-axis, verify trunnion backlash and rotary calibration.
Identify the control. Most used Hwacheons run Fanuc: 18i or 21i on late-1990s to early-2000s units, 0i-TB/TC/TD through the mid-2010s, 0i-TF and 0i-MF (“0i Plus”) current, and 31i-B on high-end multi-tasking and 5-axis. Siemens 828D or 840D is a factory option. Hwacheon Machinery America in Lincolnshire maintains a dedicated parts depot.
Hwacheon Turning Centers

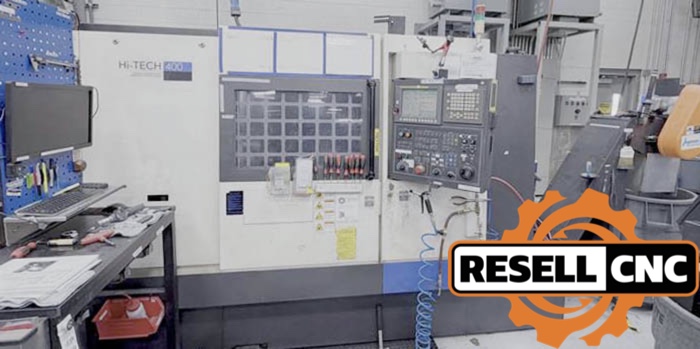

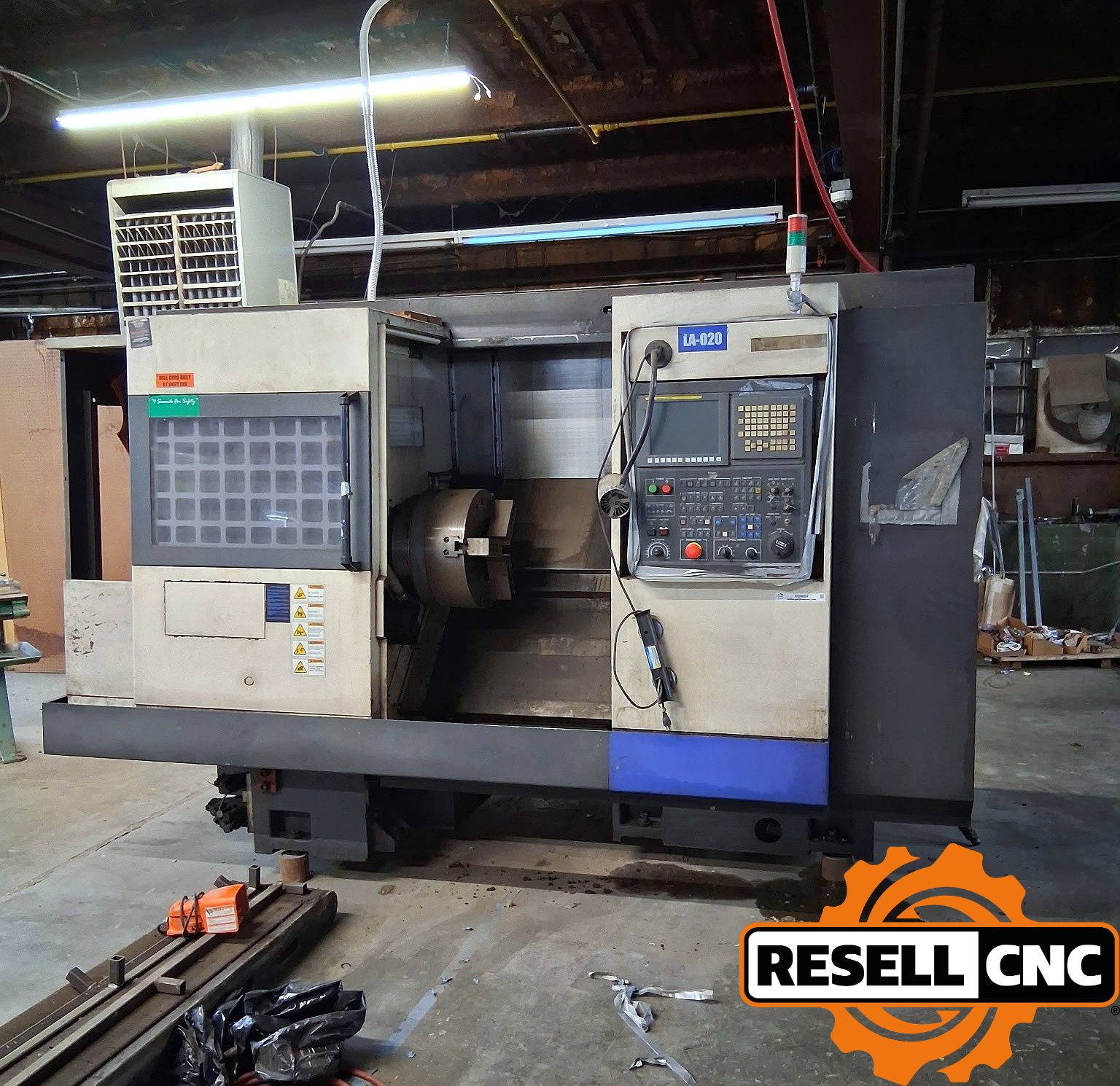

Hi-TECH Series
The Hi-TECH series is Hwacheon’s flagship turning platform, built on hand-scraped Meehanite box ways for heavy, interrupted, and hardened cuts. Models span Hi-TECH 200, 230, 350, 450, 550, 650, 700, 750, and 850, with BB and BB+ big-bore variants for oilfield work. Suffixes: A/B/C chuck capacity, L long bed, M/MC live tooling with C-axis, Y Y-axis, YSMC full multi-tasking. Sizes run from the 8–10″ chuck Hi-TECH 200 up to the Hi-TECH 850 with 1,050 mm swing. Legacy Hi-TECH 250, 300, and 400 remain abundant on the used market.

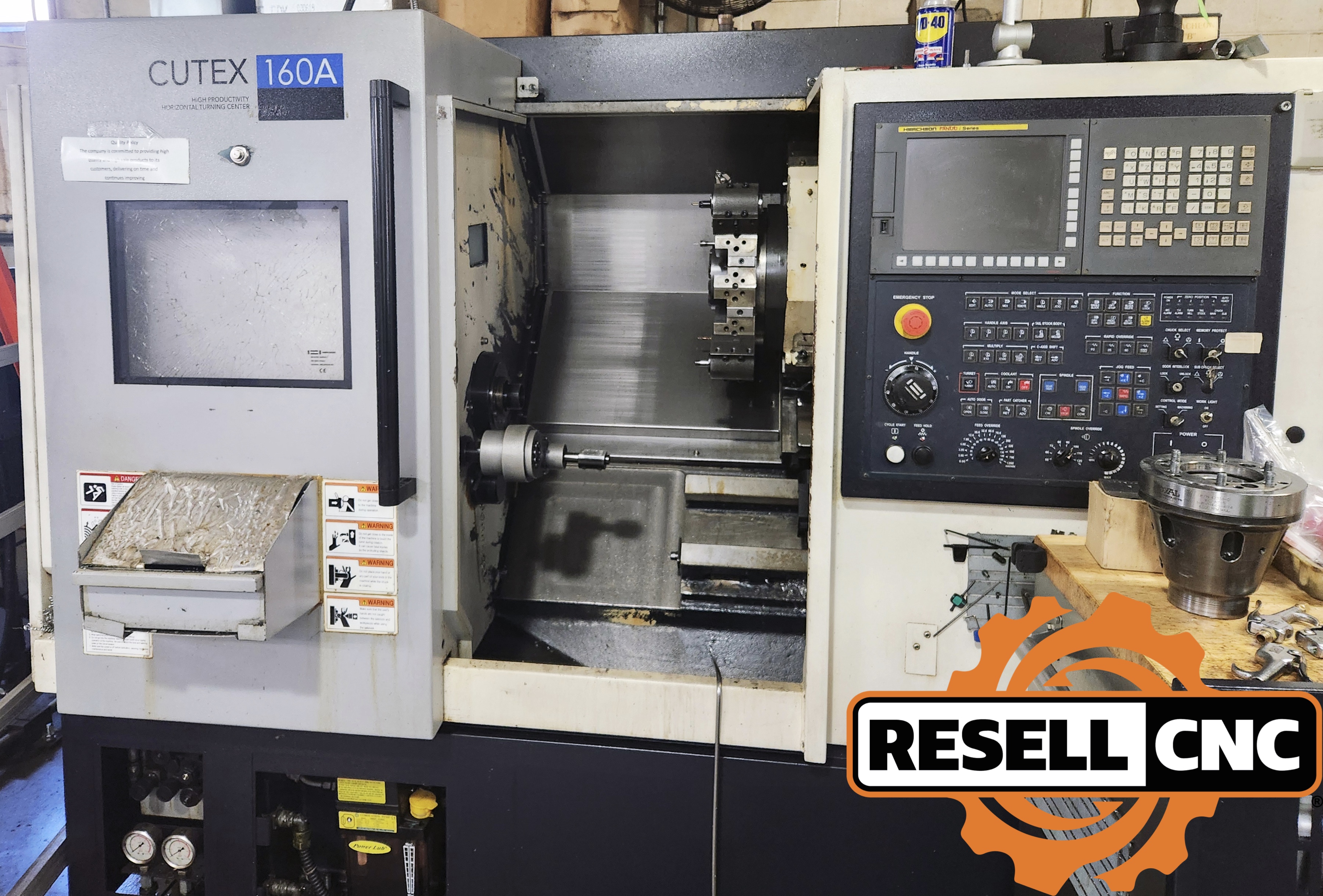

Cutex Series
The Cutex series is Hwacheon’s value linear-guideway line: Cutex 160, 180, 240, and 280. Fast rapids up to 36 m/min and 0.15-second turret indexing make Cutex a strong fit for medical, fasteners, electronics housings, and high-cycle bar and chucker work. Standard control is Fanuc 0i-TF Plus; Siemens 828D ShopTurn is optional.
VT Vertical Turning & Mega Flat-Bed
The VT series covers vertical turning from VT-450 through VT-650, VT-950+, VT-1150+, VT-2000, VT-3000, and the ram-type VT-4500. MC suffixes add live tooling. VT machines turn brake discs, wheels, wind ring gears, and flanges. The Mega series handles ship shafts, wind main shafts, and mill rolls up to 15 m. Legacy Hi-ECO lathes (21, 21HS, 31, 45) remain available with Fanuc 18T, 21i-T, or 0i-T.
Hwacheon Machining Centers
Vesta VMCs
The Vesta series delivers job-shop and production VMC performance with BT40 spindles and 8,000 to 15,000 rpm options. Current models: Vesta-660, 1000+, 1100, 1300+, 1650, and 2000, plus heavy-duty B variants (850B, 1050B, 1300B+) with BT50 spindles. Legacy Vesta 650, 850, 1000, 1050, 1300, and 1600 are common on the used market; the Vesta 1000, 1000+, and 1300 are the most-traded sizes.
Sirius Series
The Sirius series is the higher-performance machining center line. The C-type (Sirius 650, 850, 1050) provides rigid box-way VMCs. The U-series high-speed bridge machines (UM, UM+, UL+, UX, UA) use thermo-symmetric castings and built-in motor spindles up to 45,000 rpm for graphite, steel mold, and precision work. Large bridge and double-column Sirius (1250, 1350, 1750, 2500, 3000) handle automotive and aerospace tooling with BT50 spindles.
5-Axis & Horizontal Machining Centers
The M-series (M1 through M4-5AX) uses trunnion tables with built-in motor spindles up to 24,000–32,000 rpm. The D-series (D2-5AX, D3-5AX) is production-focused with optional 8- or 20-pallet Automatic Workpiece Changers. The H-series HMCs (H6, H8) feature twin-drive X/Y and BBT50 spindles. The AF-4 400 mm pallet HMC targets semiconductor work.
How to Sell Your Used Hwacheon
Hwacheon machines hold strong resale value thanks to in-house casting and spindle construction and active parts support. Hi-TECH, Cutex, Vesta, and Sirius are in particularly high demand.
Resell CNC buys used Hwacheon machines, every model, every generation, nationwide.
- Contact us at (844) 478-8181 or sales@resellcnc.com.
- Free appraisal within 24 hours, no obligation.
- Accept the offer and we handle rigging, transport, and logistics.
Frequently Asked Questions About Used Hwacheon Machines
Are used Hwacheon machines reliable?
Yes. Founded in 1952, Hwacheon is one of the longest-running Korean machine tool builders and produces its own castings, spindles, and gearboxes in-house in Gwangju. Hi-TECH lathes use hand-scraped Meehanite box ways; Sirius and Vesta VMCs use thermo-symmetric castings.
What CNC control does Hwacheon use?
Fanuc is primary: 0i-TF and 0i-MF (“0i Plus”) on most current Cutex, Hi-TECH, and Vesta; 18i or 21i on 1990s and early-2000s Hi-ECO and Mega; 0i-TB/TC/TD on mid-2000s to mid-2010s machines; and 31i-B on high-end multi-tasking and 5-axis. Siemens 828D or 840D is a factory option. Proprietary Harmony HMI ships on newer i2 and M1-5AX.
What is the difference between Hi-TECH and Cutex lathes?
Hi-TECH is the flagship heavy-duty line with hand-scraped box ways for rigid, interrupted, and hardened cuts, larger chucks, and long-shaft work. Cutex is the compact-to-midsize value line with linear roller guideways, faster rapids, and quick turret indexing, aimed at bar-fed small-part production.
What is the difference between Vesta and Sirius VMCs?
Vesta is the entry and general-purpose VMC for job-shop and production work (linear guideways, BT40, 8,000 to 15,000 rpm). Sirius is the higher-rigidity die/mold and precision line with heavier castings, oil-cooled spindles up to 45,000 rpm on U-series, bridge and double-column construction, and dedicated 5-axis variants.
What Hwacheon models hold their value best?
Hi-TECH 200, 230, and 450; Cutex 160, 180, and 240; Vesta 1000, 1000+, and 1300; Sirius UM and UL+; and VT-650 and VT-950 all maintain strong resale values. Call (844) 478-8181 for current valuations.
Does Resell CNC offer financing on used Hwacheon machines?
Yes. Resell CNC offers flexible financing options. Contact us at (844) 478-8181 to discuss terms.
How do I sell my used Hwacheon?
Contact Resell CNC at (844) 478-8181 or sales@resellcnc.com. We buy every Hwacheon Hi-TECH, Cutex, Vesta, Sirius, VT, H-series, and Mega nationwide. Free appraisal within 24 hours.
