What to Look for When Buying a Used SMTCL
SMTCL produces an exceptionally broad range of machine tools, from small CNC lathes through massive gantry boring mills. Inspection priorities vary significantly by machine type, but several universal checks apply across the lineup.
On CNC lathes, check spindle, turret, and way condition. Measure spindle runout at the nose and test across the full RPM range. On CAK flat bed lathes, inspect the flat ways for wear and verify lubrication delivery. On HTC slant bed models, check linear guides or box ways for play. Index the turret through every station and verify tool positioning repeatability. On machines with live tooling (M-suffix HTC models), test each driven station for smooth rotation and power output. Run a test cut and measure the part for roundness and surface finish.
On machining centers, verify spindle, tool changer, and axis accuracy. Test spindle runout, bearing noise, and thermal stability after warm-up. On VMC models, cycle the tool changer through every pocket. On HMC models with pallet changers, test the pallet exchange cycle for reliable indexing and clamping. Check ballscrew backlash on all axes with a dial indicator. On gantry machines, verify squareness across the full travel using laser measurement.
On boring and milling machines, inspect the spindle, column, and table. TPX and TK horizontal boring machines feature large quill spindles that must be checked for runout and smooth extension. Verify column travel straightness. On floor-type machines, check the floor plate for flatness. Test the rotary table (if equipped) for positioning accuracy and clamping.
Identify the CNC control and confirm serviceability. SMTCL machines use Fanuc, Siemens, or Fagor controls depending on model and market. Verify the control boots properly and all functions respond. Confirm replacement parts or service are available in your region. Fanuc-controlled machines offer the broadest support in North America.
SMTCL CNC Lathes
CAK Series (Flat Bed CNC Lathes)
The CAK series is SMTCL's core CNC lathe platform and the most commonly traded on the used market. The CAK3675 (8-inch chuck class) serves general-purpose production turning. The CAK50 series handles larger-diameter work with high-efficiency machining for automotive, motorcycle, and aerospace components. The CAK6150 and CAK6180 provide mid-range and large-capacity flat bed turning. All models feature Fanuc or Siemens controls and are designed for IT6 to IT7 working accuracy.
HTC Series (Slant Bed Turning Centers)
The HTC series slant bed CNC lathes offer modern turning center features: 45-degree slant bed for chip evacuation, servo-driven turret, and optional C-axis with live tooling. The HTC40 and HTC40Hm (with Y-axis) serve production turning of shaft and disc components. Slant bed models are preferred for automated production environments with bar feeders and parts catchers.
Heavy-Duty & Specialty Lathes
SMTCL's VTC vertical CNC lathes and IVT series handle large-diameter disc and ring parts. GTC gantry turning centers and GTM gantry turning/milling centers machine oversized components for the energy, mining, and rail industries. STC/SUC pipe thread lathes serve oil and gas applications. CW-series heavy-duty conventional lathes (CW61125B and larger) provide manual turning for large shafts and rolls, and remain widely available on the secondary market.
SMTCL Machining Centers & Boring Machines
Vertical & Horizontal Machining Centers

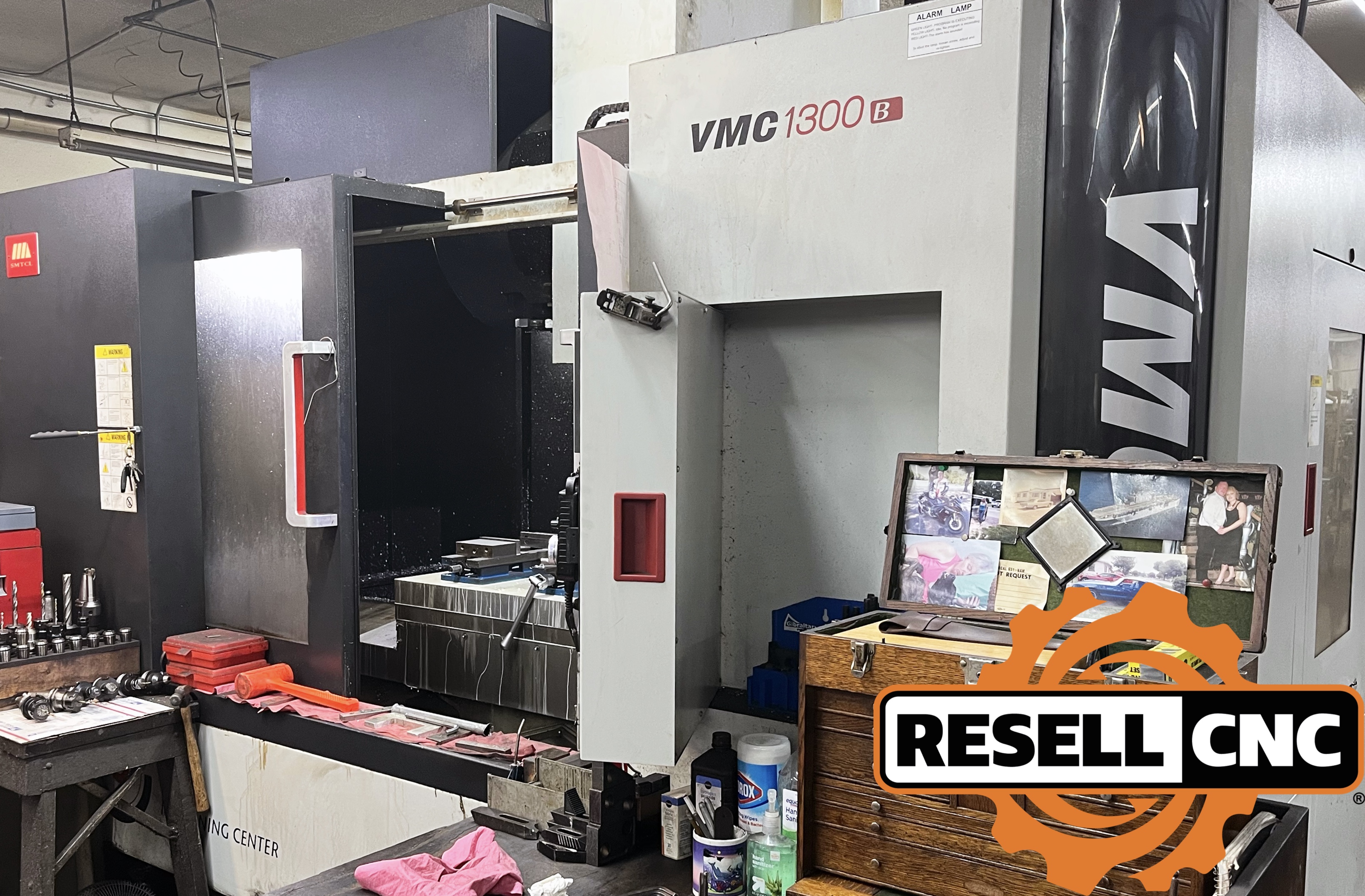

The VMC series (VMC850Q, VMC1000B, VMC-Q, VMC-B, VMC-H) provides vertical milling with 10,000 RPM spindles, 24-tool automatic tool changers, and Fanuc or Siemens controls. The HMC series (HMC-Q, HMC-H) delivers horizontal machining with pallet changers for high-volume production. The DTC series drilling and tapping centers offer high-speed hole making for lightweight parts.
Boring & Milling Machines
The TPX series (TPX611C and variants) and TK series (TK6513) horizontal boring and milling machines handle large workpieces with ISO 50 spindle tapers and rotary tables. Floor-type, planer-type, and gantry CNC boring/milling machines machine the largest components for energy, shipbuilding, and heavy equipment industries. These heavy machines represent some of the most significant used equipment purchases in the SMTCL lineup.
How to Sell Your Used SMTCL
SMTCL machines are valued on the used market for their heavy construction, broad capability range, and competitive cost of ownership. CAK CNC lathes, VMC machining centers, and CW conventional lathes maintain consistent demand.
Resell CNC buys used SMTCL machines: every model, every type, nationwide.
- Contact us — call (844) 478-8181 or email sales@resellcnc.com.
- Free appraisal within 24 hours, no obligation.
- Accept the offer — we handle rigging, transport, and logistics.
Frequently Asked Questions About Used SMTCL Machines
What does SMTCL stand for?
SMTCL stands for Shenyang Machine Tool Co., Ltd. The company traces its origins to the Shenyang No. 1 Machine Tool Plant, founded in 1935. It is the largest machine tool manufacturer in China, with over 1 million machines delivered worldwide. SMTCL has been part of China General Technology Group (Genertec) since 2019.
What CNC control does SMTCL use?
SMTCL machines are available with Fanuc, Siemens, or Fagor CNC controls depending on model and regional configuration. Fanuc is the most common control platform on machines sold in North America. Knowing which control your machine uses affects programming compatibility, operator training, and service/parts availability.
Are used SMTCL machines reliable?
Yes. SMTCL machines are built with heavy cast iron construction for rigidity and long service life. The company has nearly 90 years of machine tool manufacturing experience and uses internationally sourced components (Fanuc/Siemens controls, precision bearings, and ballscrews) on export models. Many SMTCL lathes and machining centers operate reliably in production environments for years.
What SMTCL models hold their value best?
CAK-series CNC lathes, VMC850Q and VMC1000B machining centers, and CW-series heavy-duty conventional lathes maintain consistent resale values. Larger boring mills and gantry machines hold value based on capacity and condition. Call (844) 478-8181 for current valuations.
How do I sell my used SMTCL?
Contact Resell CNC at (844) 478-8181 or sales@resellcnc.com. We buy every SMTCL model, from CAK CNC lathes and VMC machining centers through heavy-duty boring mills and CW conventional lathes. Any condition, nationwide. Free appraisal within 24 hours.
