What to Look for When Buying a Used Takumi
Takumi machines are engineered around heavy Meehanite cast iron bedwork, precision roller linear guides, and preloaded recirculating ballscrews, with a focus on the rigidity and thermal stability that die and mold shops demand for 3D surface finishing. A well-maintained Takumi delivers years of precision service. Here is what to inspect on used units.
Inspect the bridge or column for rigidity and squareness. On H Series bridge mills, verify the bridge for square, check column rigidity, and inspect the gantry rails along the full X-travel for wear or scoring. On C-frame V Series box-way machines, check the box ways for wear patterns and gib adjustment. On VC and PV linear-way machines, check the rails, blocks, and covers for chip and coolant damage.
Verify the spindle, taper interface, and tool changer. Many older Takumi VMCs use a 50-taper spindle with a 2-speed gearbox (the V11 is a typical example), while newer machines use 40-taper BT or CAT spindles and direct-drive or belted spindle motors. Test spindle runout, listen for bearing and gearbox noise across the full RPM range, and check thermal stability after warm-up. Cycle the ATC through every pocket.
Check axis motion and any 5-axis or graphite features. Run each axis through full travel at rapid and feed rates and listen for backlash or unusual noise. On 5-axis configurations, verify trunnion or rotary-axis calibration, brake function, and simultaneous motion. On graphite-equipped machines, inspect the dust containment enclosure, seals, and any electrode-handling automation.
Identify the CNC control, parameters, and accessories. Takumi machines typically ship with Fanuc or Heidenhain controls. Confirm the control series, software version, and parameter backups. Verify coolant-through-spindle function if equipped, chip conveyor, probing routines, and any pallet changer or rotary table that transfers with the machine.
Takumi Machine Series
H Series Bridge Mills (Flagship)
The H Series is Takumi's flagship platform and the brand's centerpiece in die and mold shops. Bridge construction delivers the rigidity, thermal stability, and damping required for fine 3D surface finish on complex mold geometries. H Series machines are available in 3-axis, 5-axis, and graphite-equipped configurations, with generous workpiece loading access and a choice of Heidenhain or Fanuc CNC controls.
V Series Box-Way VMCs
The V Series uses heavy-duty box-way construction for maximum rigidity in heavy roughing and large-tool operations. V Series machines are widely traded on the used market in 40-taper and 50-taper configurations. The legacy V11 is a popular older 50-taper VMC with a 2-speed gearbox and Fanuc control, with a reputation for holding tenths after decades of service when properly cared for.

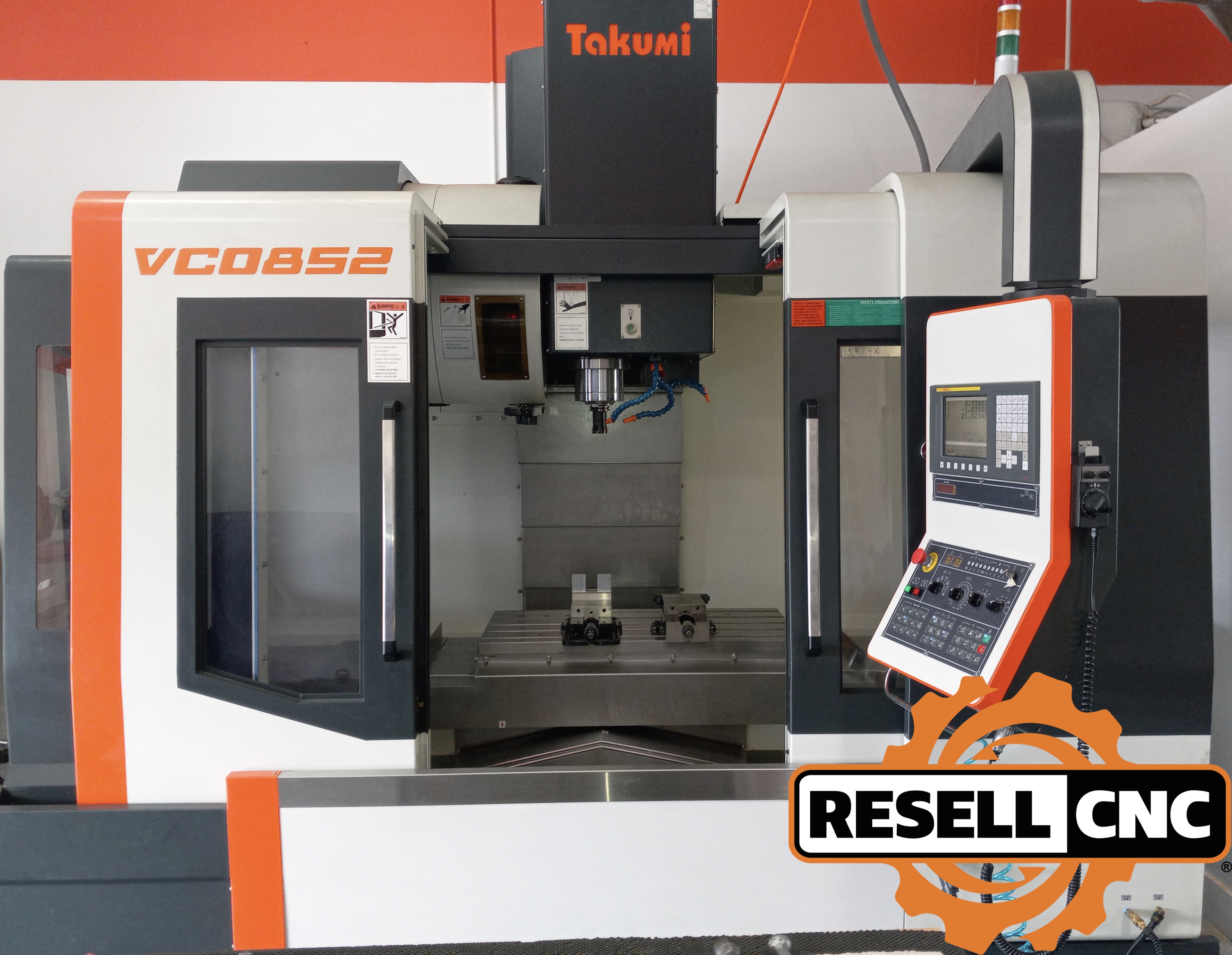

VC and PV Series Linear-Way VMCs
The VC Series and PV Series are linear-guideway vertical machining centers built for higher dynamics, faster rapid traverses, and shorter cycle times across general production work. These machines serve aerospace, electronics, energy, medical, and semiconductor shops where throughput is as important as precision.
Takumi 5-Axis Configurations
Takumi 5-axis machines add trunnion or rotary-axis units to the H Series bridge platform and to compatible VMC bases, enabling complete machining of complex die, mold, and aerospace parts in a single setup. 5-axis Takumi machines often come paired with Heidenhain controls and additional probing for tool and workpiece setting.
Graphite-Equipped Machines
Takumi graphite-equipped configurations include sealed enclosures and dust containment systems engineered specifically for the abrasive dust of electrode machining in EDM tooling shops. These machines often pair with high-speed spindles and dedicated electrode-handling features.
How to Sell Your Used Takumi
Takumi machines hold strong resale value thanks to Hurco's ongoing global service network, the brand's die and mold reputation, and active demand from tool, mold, and aerospace shops. H Series bridge mills, V Series 50-taper VMCs, and 5-axis Takumi machines are in particularly high demand.
Resell CNC buys used Takumi machines, every model and every generation, nationwide.
- Contact us at (844) 478-8181 or sales@resellcnc.com.
- Free appraisal within 24 hours, no obligation.
- Accept the offer and we handle rigging, transport, and logistics.
Frequently Asked Questions About Used Takumi Machines
What is Takumi best known for?
Takumi is best known for high-precision bridge mills used in die and mold production, with a reputation for excellent 3D surface finish, rigid Meehanite cast iron construction, and long-term reliability. The H Series bridge mill platform is the brand's centerpiece for tool and mold shops worldwide.
What is the difference between Takumi and Hurco?
Hurco Companies Inc. is the publicly traded American CNC manufacturer (NASDAQ: HURC) headquartered in Indianapolis, Indiana. Takumi is a wholly-owned Hurco subsidiary headquartered in Taiwan that specializes in bridge mills and high-precision VMCs for die, mold, and production work. Both brands are built at Hurco Manufacturing Ltd. in Taiwan, along with the Milltronics brand.
Why are Takumi bridge mills popular in mold shops?
The H Series bridge construction delivers the rigidity, thermal stability, and dynamic response required for fine 3D surface finishing on complex mold geometries. The combination reduces post-processing labor on cavities, cores, and electrodes, which is the key reason mold shops select Takumi over more general-purpose VMCs.
Are used Takumi machines reliable?
Yes. Takumi has built precision CNC machines for over 30 years and is known for long-running 50-taper V Series VMCs holding tight tolerances after decades of service. Current H Series bridge mills continue that tradition and are backed by Hurco's global service and parts network.
What CNC control do Takumi machines use?
Takumi machines ship with Fanuc controls in the United States and Heidenhain controls on high-end die and mold configurations and in European markets. Confirm the exact control series and software version before purchase.
What should I inspect on a used Takumi?
Bridge or column squareness, way condition (box or linear), spindle runout and bearing health, tool changer function, axis motion through full travel, any 5-axis trunnion calibration, graphite dust containment if equipped, control software version, and parameter backups.
Does Resell CNC offer financing on used Takumi machines?
Yes. Resell CNC offers flexible financing options to help your shop acquire the equipment it needs. Contact us at (844) 478-8181 to discuss terms.
How do I sell my used Takumi?
Contact Resell CNC at (844) 478-8181 or sales@resellcnc.com. We buy every Takumi model and generation: H Series bridge mills, V Series box-way, VC and PV linear-way VMCs, 5-axis, and graphite-equipped machines. Free appraisal within 24 hours.
