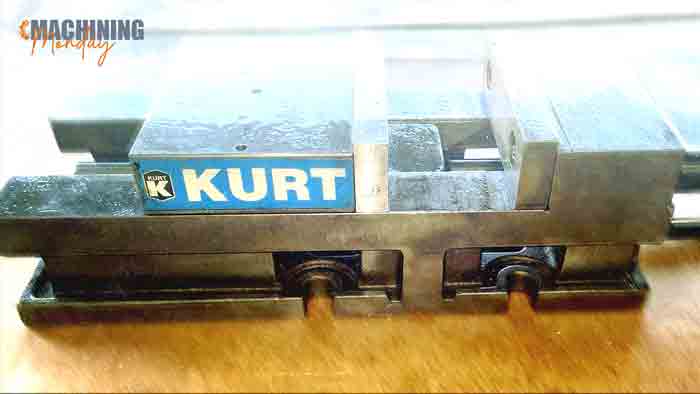

The Kurt Vise Doesn't Just Squeeze. It Pulls Your Part Down.

You clamped a part in a Kurt this morning without thinking about it. You dropped it on the parallels, snugged the handle, gave it the usual firm pull, and went to work. You have done it ten thousand times. The vise is so ordinary, so permanent a part of the bench, that it has become invisible, just the thing that holds the part while the real work happens.

Here is the part most machinists never think about: while you were tightening that handle, the vise was quietly pulling your part down onto the parallels. Not just squeezing it sideways. Pulling it down. That downward pull is the entire reason a Kurt earns its place on your table, and it comes from one angled idea worked into the vise more than sixty years ago.

The Problem Nobody Names Out Loud

Every machinist has fought jaw lift, whether or not they ever called it that. You set a part on parallels, clamp it, and when you go to check it the part has crept up. The parallels are loose. Your Z-height is off. On a milled surface that has to be parallel to the bottom, or a hole that has to sit at a set depth, that little lift is the difference between a good part and scrap.

It happens because of how an ordinary vise clamps. The screw pushes the movable jaw straight forward, but the jaw is riding on a slide with a little clearance, and the cutting forces and clamping forces do not act in a perfectly straight line. So the top of the jaw tips forward and up as it tightens. That tiny rotation lifts the part off the parallels. The old fixes are the ones every shop knows: tap the part down with a dead-blow while you clamp, clamp and re-clamp, lean on the parallels to check they are tight. All of it is ritual built around a machine that fights you.

Jaw lift is the quiet tax on every setup. You either pay it in dead-blow taps and re-checks, or you buy a vise engineered so it never happens. Kurt bet the company on the second one.

The Fix Was One Angled Screw

The AngLock design attacks the lift at its source instead of asking the operator to fight it. Inside the vise, a tapered element on the screw engages an angled surface on the movable jaw. When you tighten the handle, that angle does two jobs at once. It drives the jaw forward against the part like any vise, and it drives the jaw downward, hard, against the bed of the vise.

That downward component is the whole trick. Instead of the top of the jaw tipping up and taking your part with it, the jaw is pulled down and seated as it clamps, and the part gets pressed down onto the parallels rather than lifted off them. The harder you clamp, the more firmly the part is held down where you set it. The vise stops being something you fight and becomes something that finishes the setup for you. A well-set Kurt holds repeatability in the neighborhood of a thousandth, part after part, without a dead-blow in sight.

It is a small piece of geometry, not a motor or a sensor or a screen. It is an angle, cut into steel, that turns the force you were already applying into a force that works in your favor. That is the kind of fix machinists respect, because it does not add complexity. It removes a problem.

Where the Vise Came From

Kurt Manufacturing was founded in 1946 by Kurt Kuban in Minneapolis, Minnesota. It was, and remains, a family business. The company did precision machining and contract work, the kind of shop that lived and died on holding a tolerance, which matters to the story, because the AngLock vise came from people who used vises for a living, not from a marketing department looking for a product.

The AngLock milling vise arrived in 1962, launched as a family of three models. A shop that had spent years fighting jaw lift on everyone else's vises engineered the lift out, and the design was good enough that it did not need reinventing. The vise on benches today works on the same principle as the one from 1962. The flagship D-series, built around the D688, carries it forward with an eight-plus inch jaw opening and the same pull-down clamping, and it is the vise a huge share of American shops now reach for by default.

Why It Became the Standard

Standards are not declared, they are earned one setup at a time, and the Kurt earned it by being boringly reliable. When a vise holds the part where you put it, clamp after clamp, day after day, a shop stops thinking about workholding and starts trusting it. That trust is worth more than any spec sheet. A programmer can write a job around a Kurt and assume the part will be where the model says it is, and a new hand can be handed one and taught to clamp correctly in a minute.

There is a reason you see Kurts lined up on pallets in automated cells and bolted to the tables of thirty-year-old Bridgeports alike. The vise does not care what it is mounted to. It holds the part down and square, and it keeps doing it for decades. Buy a used one at auction and it likely still clamps true, because there is very little in it to wear out and the design does not go obsolete. That longevity is part of why the name became shorthand: in a lot of shops, people do not say vise, they say Kurt.

What It Means on Your Table

The next time you clamp a part in a Kurt, notice what you are not doing. You are not reaching for the dead-blow to knock the part down. You are not clamping, checking the parallels, loosening, and re-clamping. You are trusting that the part is seated, because the vise is pulling it down for you. That trust is the finished form of an idea somebody had in a Minneapolis shop in 1962: that a vise should not fight the operator, it should finish the job the operator started.

Good tools disappear. The best ones become so dependable you forget they are solving a problem at all. The Kurt vise is the clearest example of that on the whole machine, and the problem it quietly solves every single time is the one you stopped having to name.

Resell CNC Take

When a machine comes through our door with a bank of Kurt vises still on the table, that tells us something about how it was run. The shops that buy Kurts tend to be the shops that care about holding a number, and the vises usually outlast the machine they were bolted to. It is one of the few pieces of tooling we almost never see worn out. Good iron and good workholding travel together, and both hold their value.

Frequently Asked Questions

What is a Kurt vise?

A Kurt vise is a precision milling machine vise made by Kurt Manufacturing of Minneapolis, widely treated as the standard workholding vise on American mills. Its defining feature is the AngLock clamping design, introduced in 1962, in which the movable jaw is pulled down as it clamps so the part is held firmly on the parallels rather than lifted off them.

How does AngLock work?

A tapered element on the vise screw engages an angled surface on the movable jaw. As the operator tightens the vise, that geometry converts the forward clamping force into a force that also pulls the jaw downward against the bed. The part gets pressed down onto the parallels instead of being lifted, which is what eliminates jaw lift.

What is jaw lift and why does it matter?

Jaw lift is when the movable jaw of a vise tips up as it clamps, lifting the part off the parallels. It throws off part height and squareness, which can scrap a part that has to hold a tolerance. AngLock prevents it by pulling the jaw and the part downward as the vise tightens.

When was Kurt Manufacturing founded?

Kurt Manufacturing was founded in 1946 by Kurt Kuban in Minneapolis, Minnesota, and remains a family business. It introduced the AngLock milling vise in 1962, starting with three models, and the same clamping principle is used in Kurt vises today.

Why are Kurt vises considered the standard?

Because they hold a part where you set it, repeatably, for decades. The AngLock design removes jaw lift, so shops can trust the part height and squareness clamp after clamp. That reliability, plus long service life with little to wear out, is why the name became shorthand for a milling vise in many shops.
