The Automatic Tool Changer: The 1958 Machine That Invented the Machining Center

Walk past any machining center on your floor and the tool changer swings, grabs, swaps and retracts in a couple of seconds. Nobody watches it. It is the least interesting thing in the building right up until it stops working, and then it is the only thing that matters. That mechanism is the reason the machine exists in the form it does.

Before it, numerical control could move a table to a position accurate to a thousandth and then had to stop and wait for a person to change the cutter. One tool, one operation, then a human. The automatic tool changer is what turned a very precise milling machine into a machining center, and it arrived on a specific machine, from a specific company, filed by five men on a specific day in June 1958.

What is an automatic tool changer?

An automatic tool changer, or ATC, is the mechanism that stores cutting tools on a machine, selects the one the program calls for, moves it into the spindle, and puts the used tool back in storage, all under the machine's own control with nobody touching it. The tools live in a magazine, a carousel or a chain, and an arm or a shuttle moves them between the magazine and the spindle. It is the feature that separates a machining center from a milling machine, because it is what lets one machine run drill, then bore, then tap, then face, on one setup, without a person standing there.

The Problem Ford Handed the Industry in 1956

The lathe side of the shop had already solved a version of this problem mechanically. A turret lathe put a set of tools on an indexing head so an operator could bring each one to the work without tearing down a setup. Milling had no equivalent, and numerical control made the gap impossible to ignore.

NC itself was already real by the mid 1950s. MIT and the Air Force had put a working prototype together in 1952, a milling machine that could follow instructions on tape, and the language it was programmed in is still running your machines today. It was a genuine breakthrough and it had an obvious hole in it. The machine could position itself beautifully and it could only do one thing before somebody had to walk over and change the cutter.

In 1956 Ford Motor Company went to the machine tool builders and asked for proposals. That detail is preserved in a federal court record, and it reframes the whole invention. The tool changer was not a laboratory curiosity somebody thought up and then went looking for a use for. It was an answer to a customer who had counted how much of the day their expensive new NC machines spent sitting still while a person swapped a drill for a reamer.

The math was never complicated. A court reviewing the industry years later put it plainly: the time to make a tool change has a direct and significant effect on cost, so the efficiency of the tool changer is of vital importance. Every second the spindle is not cutting is a second the machine is losing money, and in 1956 every one of those seconds had a person attached to it.

Five Names on One Patent

On June 27, 1958, Kearney & Trecker of Milwaukee filed a patent application naming Wallace E. Brainard and four other company employees as joint inventors. It issued as U.S. Patent 3,052,011 on September 4, 1962, and it was reissued twice, in May 1964 and again in March 1965, which is what a company does when it intends to defend something.

What the patent describes is recognizable to anyone who has watched a modern machine work. A machine tool with an automatic tool changing device that selects tools from storage, transfers them to the operating station, and returns the used tool to storage. The mechanism at the center of it is a two-handed tool changer, one that delivers a tool and restores the one coming out at the same time rather than making two trips. That double-arm swap remains the common architecture on machining centers today.

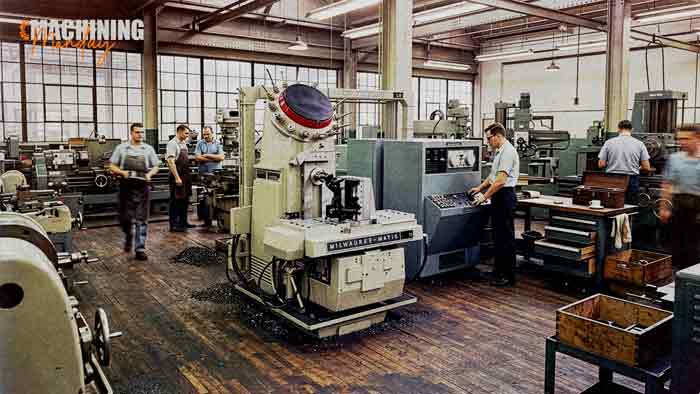

The machine it went into was the Milwaukee-Matic. Kearney & Trecker introduced it in 1958 and sold the first one in 1959.

Five names on one application, filed the same year the machine was introduced. The automatic tool changer was not one inventor's flash of insight. It was a company answering a customer's complaint with a team, on a deadline, and getting it right the first time to a degree that the basic architecture never had to change.

What Changed the Day the Magazine Turned

The obvious gain is the one everybody names: fewer setups. A part that needed a mill, a drill press and a boring mill, with a fixture and an operator at each, could be finished on one machine in one setup. Handling went away. Scrap from re-fixturing went away. Tolerance stackup between operations went away, because the part never moved.

The less obvious gain is what it did to the operator's job. Once the machine could change its own tools, one person could tend more than one machine, because the operator's role shifted from performing every step to loading, unloading and watching. That is the beginning of a line that runs straight through pallet pools, bar feeders and lights-out cells to whatever your shop is doing about the labor market this year. Every one of those is the same idea extended: give the machine one more thing it used to need a person for. The controls followed the same path, and by 1981 a machine could be programmed in the machinist's own language at the control itself.

It also created the category. A milling machine that changes its own tools and runs a sequence of operations is not really a milling machine anymore, and the industry needed a different word for it. The machining center is what came out of that, and the tool changer is the feature the definition rests on.

The Lawsuits Are How You Know

Here is the part that does not show up in the usual retelling, and it is the best evidence of how big this was.

The court record shows Cincinnati Milacron first became aware of what Kearney & Trecker had built in 1958 and 1959, when Westinghouse Electric of Pittsburgh sent an inquiry asking what Milacron had that compared to the Milwaukee-Matic line. A competitor learning it is behind because a customer tells them so is about as direct a measure of impact as the record offers.

The numbers followed. Milwaukee-Matic sales passed $36 million in 1967 alone, and totaled more than $150 million through 1968. Then Kearney & Trecker spent years defending the patent, suing Giddings & Lewis and later Cincinnati Milacron over the tool changer. Those cases ran into the 1970s.

Nobody litigates for two decades over a convenience feature. They do it over the thing the whole product category is built on.

Why It Still Matters on Your Floor

Sixty-eight years on, the tool changer is still doing the job Brainard and his four colleagues designed it to do, and on a used machine it is one of the most revealing things you can put your hands on. Consider what it has been through. Every single operation that machine has ever run required a complete mechanical sequence from the changer: grip, unclamp, pull, rotate, insert, clamp, retract. Not a rotation, not a linear move, a full multi-step sequence with a heavy tool in it, repeated for every tool call in every program for the life of the machine.

That is why it belongs near the top of any used inspection, not near the bottom. Cycle every pocket in the magazine, not three of them. Listen for hesitation at the swap and for a hard, consistent seat when the tool goes home. Check the gripper fingers and the retention knobs for wear, watch for a carousel that indexes past position and corrects, and confirm the machine recovers cleanly from a tool change alarm rather than needing to be walked back by hand. On a machine with a chain magazine, run it through the full chain and listen to the whole thing.

Tool changer trouble rarely announces itself in a five minute demo. It shows up on the fortieth swap of a production run, at two in the morning, in a machine somebody bought because the spindle sounded good.

Resell CNC Take

Buyers inspect the spindle and the control and skim the tool changer, and it is backwards. The spindle is expensive to fix and easy to evaluate. The tool changer is the opposite: cheaper to put right, far harder to judge standing in front of a machine for twenty minutes. When we go through a machining center before it ships, the magazine gets cycled all the way around, every pocket, because that is where a machine tells you how it was actually run.
