What to Look for When Buying a Used Hurco
Hurco machines are built for high-mix job-shop and toolroom work, with roller linear rails, pretensioned ballscrews, and CAT40 Big-Plus, CAT50, or HSK spindles. The brand's biggest differentiator is the control, so inspection covers both mechanical fundamentals and the PC-based control hardware.
Check the spindle, taper, and ATC. Indicate spindle runout near the nose with a precision test bar (healthy baseline is 0.0002 to 0.0004 in. TIR), warm the spindle through its full rpm range, and listen for growl or rumble. Inspect the taper for fretting or galling. Cycle the ATC through every pocket and ask for documented spindle hours.
Inspect ways, wipers, and ballscrews. Way covers are the best visual tell of how the machine was cared for: straight covers with intact wipers indicate an attentive operator, while dented sections point to crash history. Pull covers where possible and inspect ballscrews for grooving, pitting, or wear bands.
Verify the PC-based control boots cleanly. Every Hurco MAX console is an industrial PC, and components age. Power the machine from cold and confirm it boots fully. Ask whether the hard drive has been imaged, since machine parameters, backlash compensation, and tool offsets live there. Verify way-lube flow at every distribution point; plugged lube lines are the number-one preventable killer of Hurco ways and ballscrews.
Hurco Vertical Machining Centers
VMX Series (Performance VMCs)
The VMX series is Hurco's workhorse performance line and the most commonly traded on the used market. Current models span the VMX24i, VMX30i, VMX42i, VMX50i, VMX60i, VMX64i, and VMX84i, with 12,000-rpm CAT40 Big-Plus spindles and CAT50 "50T" variants on larger envelopes. VMXD direct-drive variants upgrade to 15,000-rpm inline spindles.
VM Series & Legacy BMC, KM, KMB

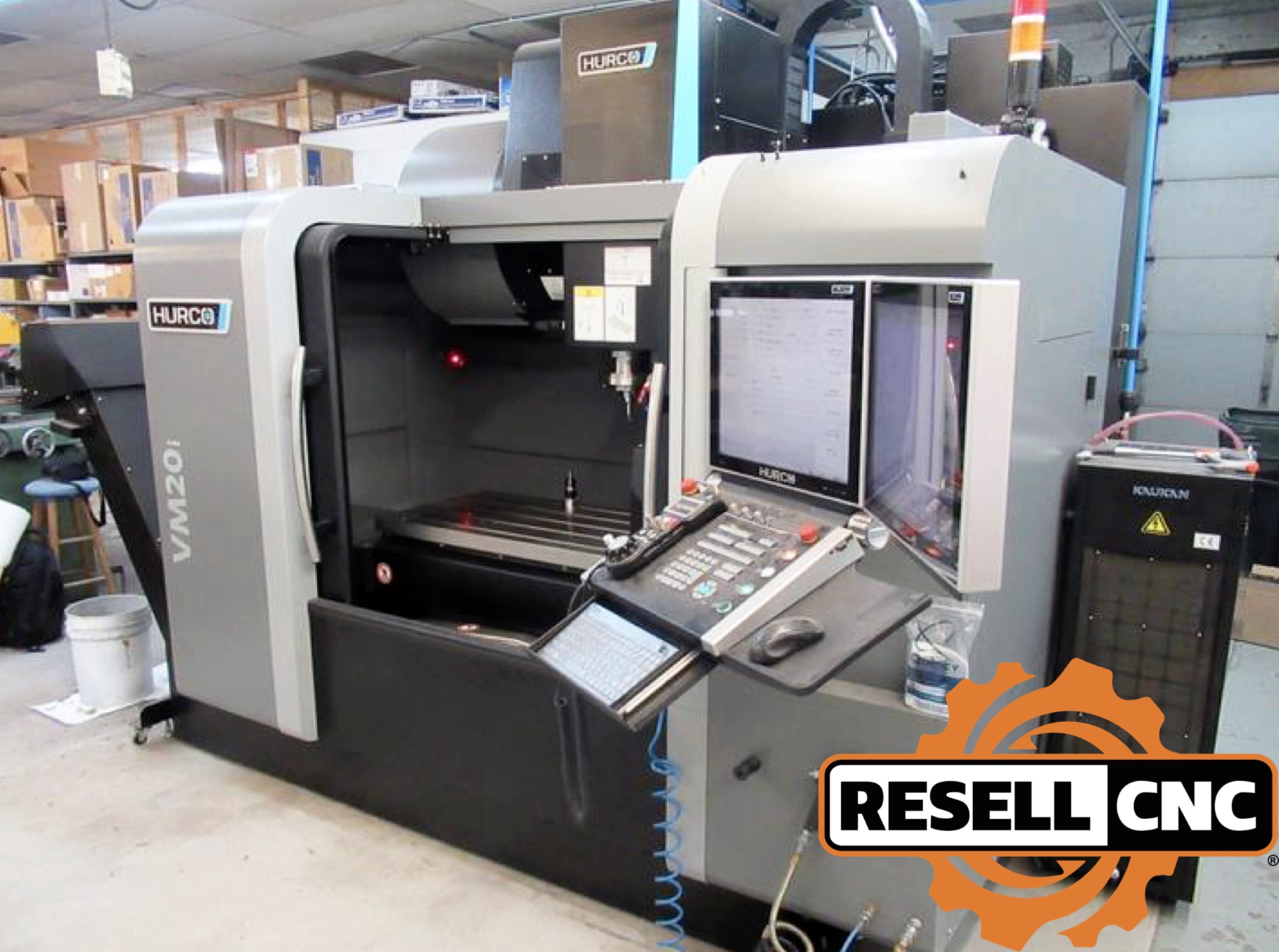

The VM series (VM ONE, VM10i, VM10HSi, VM20i, VM30i) covers smaller footprints; the VM10HSi runs a 20,000-rpm BT30 spindle. Pre-"i" VM and VMX machines appear heavily on the secondary market. The BMC series (BMC-20, BMC-30, BMC-40) was Hurco's 1990s VMC line with Ultimax 3 or 4 controls, and KM knee mills and KMB bed mills remain common toolroom finds.
Hurco 5-Axis, Bridge & Double Column
VC Cantilever & U-Series Trunnion 5-Axis
The VC500i, VC600i, and VCX600i are compact cantilever 5-axis machines with integrated trunnion and 12,000-rpm CAT40 spindles. The U-series (VM10Ui, VMX30Ui, VMX42Ui, BX40Ui) places a trunnion on a 3-axis chassis.
VMX SRT/SW, BX Bridge & DCX Double-Column
VMX swivel-head machines (VMX42SRTi, VMX42HSRTi, VMX60SRTi, VMX84SWi) deliver 5-axis in the VMX chassis. The BX bridge series (BX40i, BX50i, BX60i) targets high-speed mold and die with 20,000-rpm HSK 63A spindles. The DCX double-column line (DCX22i through DCX42i) covers the largest envelopes Hurco offers.
Hurco Turning Centers & HMCs
The TM, TMM, and TMX series cover 6 to 12 inch chuck turning. TMM adds live tooling and C-axis; TMX MY and MYS variants add Y-axis and sub-spindle for mill-turn work. The HM1700i and HM1700Ri deliver pallet-change HMC capability, and the HBMX series covers horizontal boring.
How to Sell Your Used Hurco
Hurco machines hold strong resale value: the installed base is large, WinMax controls span two decades, and the architecture uses standard components.
Resell CNC buys used Hurco machines every model, every generation, nationwide.
- Contact us at (844) 478-8181 or sales@resellcnc.com.
- Free appraisal within 24 hours, no obligation.
- Accept the offer. We handle rigging, transport, and logistics.
Frequently Asked Questions About Used Hurco Machines
Are used Hurco machines reliable?
Yes. Hurco machines are built with proven components: roller linear rails, pretensioned ballscrews, and CAT40 Big-Plus or HSK spindles. WinMax has been in production since 2006, and a mature service ecosystem keeps legacy Ultimax-era machines running.
What CNC control does Hurco use?
Current machines run WinMax on the MAX5 dual-screen console with 10,000-block look-ahead and two 19-inch touchscreens. Legacy machines run Ultimax (Ultimax 2, 3, or 4). Hurco invented conversational CNC programming in 1976.
What should I inspect before buying a used Hurco?
Check spindle runout, taper condition, and documented hours. Inspect way covers, wipers, and ballscrews for crash damage or wear. Verify the control boots cleanly from cold, confirm the hard drive has been imaged, check way-lube flow, cycle the ATC, and compare backlash parameters against factory spec.
What Hurco models hold their value best?
VMX performance VMCs, the VC500i and VM10Ui 5-axis machines, BX bridge mills, and late-model TMX mill-turn lathes. WinMax controls, through-spindle coolant, and documented service history command a premium. Call (844) 478-8181 for valuations.
Where are Hurco machines made?
Hurco is headquartered in Indianapolis, Indiana. Primary manufacturing runs through Hurco Manufacturing Ltd. in Taiwan, with operations in Italy and China.
Is Hurco good for job shops?
Yes. Conversational WinMax programming lets operators program short-run parts at the machine from a print without a CAM seat.
Does Resell CNC offer financing on used Hurco machines?
Yes. Resell CNC offers flexible financing options to help your business acquire the equipment it needs. Call (844) 478-8181.
How do I sell my used Hurco?
Contact Resell CNC at (844) 478-8181 or sales@resellcnc.com. We buy every Hurco, Milltronics, and Takumi model nationwide, free appraisal within 24 hours.
