What to Look for When Buying a Used Matsuura
Matsuura machines are engineered for high-precision 5-axis production, automated pallet-pool operation, and long unmanned runs. Many MX and MAM72 units from the 2000s and 2010s still run 72-hour lights-out shifts in medical, aerospace, and firearms shops. Here is what to verify.
On MX-series 5-axis VMCs, check the trunnion, spindle, and pallet system. The MX-330, MX-420, MX-520, and MX-850 use a tilting-rotary B/C trunnion table. Verify both axes for smooth travel, clamp engagement, and full-range calibration. MX spindles are typically 15,000 rpm Cat 40 or HSK-A63 (optional 20,000 and 30,000 rpm). Check runout at full rpm. On pallet pool configs (PC4, PC10, PC15), cycle every pallet and verify clamp repeatability.
On MAM72 pallet systems, verify the tower ATC and pallet pool. MAM72-35V, MAM72-52V, MAM72-63V, and MAM72-100H ship with tool towers up to 530 tools and 10 to 15+ pallet pools. Cycle the magazine through every pocket, inspect the transfer arm, and cycle pallets end-to-end under load. Verify the Matsuura Intelligent Control handles queue scheduling and tool life management.
On CUBLEX mill-turn, validate milling, turning, and grinding independently. CUBLEX-35 and CUBLEX-63 combine three operations on one platform. Measure spindle runout in milling mode, check turning spindle bearings and chuck repeatability, and run a grinding dressing cycle if equipped. Verify the tool changer indexes through all three operation categories.
On H.Plus HMCs and linear motor machines, check standard HMC items plus linear motor cooling. H.Plus-300, H.Plus-405, H.Plus-504, H.Plus-500, H.Plus-630, and H.Plus-800 are production HMCs with pallet pools. On linear motor machines (LX-160, LF-160, LM-500, LV-500, LS-160), verify the cooling circuit, check bearing wear, and validate servo performance.
Matsuura 5-Axis Vertical Machining Centers
MX Series (MX-330, MX-420, MX-520, MX-850)
The MX-series is Matsuura's core 5-axis line. MX-330 and MX-420 are compact 5-axis VMCs for small and medium parts, often with PC10 pallet pools. The MX-520 is the most widely traded Matsuura 5-axis worldwide, with PC4 and 90 or 120-tool options. The MX-850 extends the platform with a larger work envelope.
MAM72 Series (35V, 52V, 63V, 100H)
The MAM72 is Matsuura's premier pallet-pool 5-axis system. MAM72-35V, MAM72-52V, and MAM72-63V offer 15+ pallets and up to 530 tools for 72-hour unmanned production. MAM72-100H is the horizontal variant for aerospace and long-workpiece work.
Matsuura Multi-Tasking, Horizontal & Linear Motor
CUBLEX Multi-Tasking (CUBLEX-35, CUBLEX-63)
CUBLEX-35 and CUBLEX-63 integrate milling, turning, and grinding on one 5-axis platform for complete part machining in a single setup, with large pallets and automated tool change.
H.Plus Horizontal Machining Centers

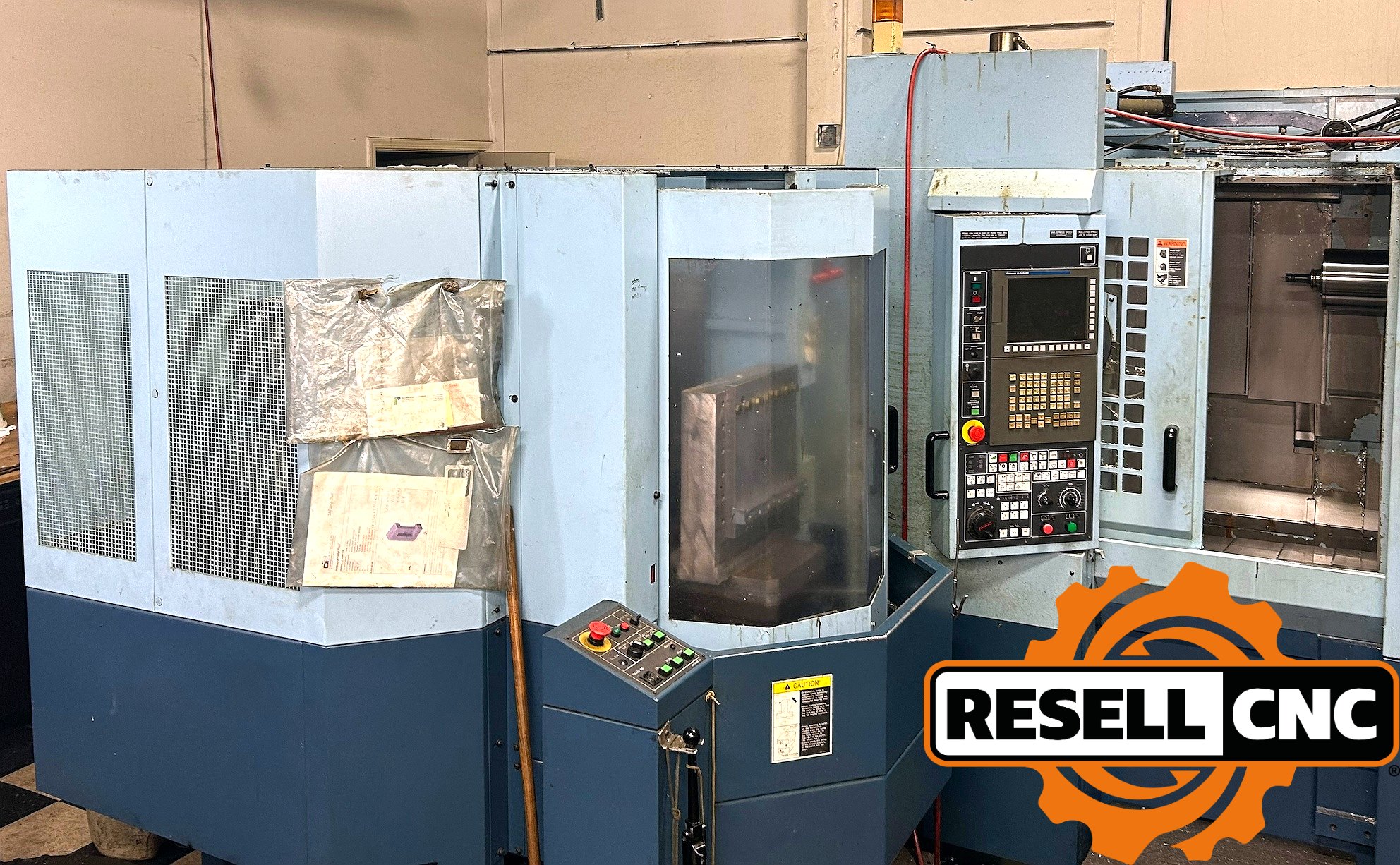

The H.Plus series (H.Plus-300, H.Plus-405, H.Plus-500, H.Plus-504, H.Plus-630, H.Plus-800) delivers production horizontal machining with integrated pallet pools.
Linear Motor Series
The Linear Motor lineup (LX-160, LF-160, LM-500, LV-500, LS-160) replaces ballscrews with linear motors for ultra-high-speed, zero-backlash motion ideal for die & mold finishing.
Matsuura 3-Axis VMCs & LUMEX Hybrid
Matsuura VX-660, VX-1000, VX-1500, V.Plus-550, and V.Plus-800 deliver 3-axis vertical machining. The LUMEX Avance-25 and Avance-60 are hybrid metal 3D printers combining laser sintering with high-speed milling for finished additive parts without secondary machining.
How to Sell Your Used Matsuura
Matsuura machines hold exceptional resale value. MX-520, MX-420, MAM72-35V, CUBLEX-63, and H.Plus-405 are in high demand.
Resell CNC buys used Matsuura machines nationwide.
- Contact us with model, serial, control, and photos. Call (844) 478-8181 or email sales@resellcnc.com.
- Free appraisal within 24 hours, no obligation.
- Accept the offer and we handle rigging, crating, and transport.
Frequently Asked Questions About Used Matsuura Machines
Are used Matsuura machines reliable?
Yes. Matsuura is one of the top 5-axis and automation specialists in the industry, with over 20,000 machining centers shipped worldwide. Many MX and MAM72 units still run 72-hour unmanned shifts.
What CNC control does Matsuura use?
Fanuc-based controls with the Matsuura Intelligent Control interface. Legacy machines may run Fanuc 16i or 18i; current models use Fanuc 30i, 31i, or 32i with collision avoidance and scheduling overlays.
What makes Matsuura different from other 5-axis builders?
Pallet-pool automation at every size. Shops can start with a compact MX-330 PC10 and scale to a MAM72-52V PC15 using interchangeable pallets. Lights-out runs of 72+ hours are standard design targets.
What Matsuura models hold their value best?
MX-520 and MX-420 5-axis, MAM72-35V and MAM72-52V pallet systems, CUBLEX-35 and CUBLEX-63 mill-turn, and LUMEX Avance-25 hybrid. Call (844) 478-8181 for valuations.
Is Matsuura still in business?
Yes. Matsuura Machinery Corporation is an independent Japanese manufacturer headquartered in Fukui. US operations run through Matsuura Machinery USA in St. Paul, Minnesota.
Can I get parts for older Matsuura machines?
Yes. Matsuura Machinery USA supports parts, service, retrofits, and application engineering across the installed base, including legacy FX, MC-V, and early MX platforms.
Does Resell CNC offer financing on used Matsuura?
Yes. Resell CNC offers flexible financing options. Contact us at (844) 478-8181 to discuss terms.
How do I sell my used Matsuura?
Contact Resell CNC at (844) 478-8181 or sales@resellcnc.com. We buy every Matsuura model nationwide. Free appraisal within 24 hours.
```
