What Is an Engine Lathe, and Why Every Shop Needs One

There is a machine in most shops that nobody brags about. It sits against a wall with a chuck key hanging off a hook beside it, and the chip pan has not been emptied since the last time somebody actually needed it. Then a shaft comes in bent, or a bushing has to be a thousandth smaller by lunch, or a fixture pin snaps at four on a Friday, and that machine is the only thing in the building that can help.

It is also the oldest idea on your floor by a wide margin. The engine lathe is the machine the rest of the industry got built on top of, and the story of how it got that way runs through a London workshop in 1800, a Rhode Island patent filed two years before that, and five apprentices who went on to build much of what a nineteenth century factory contained.

What is an engine lathe?

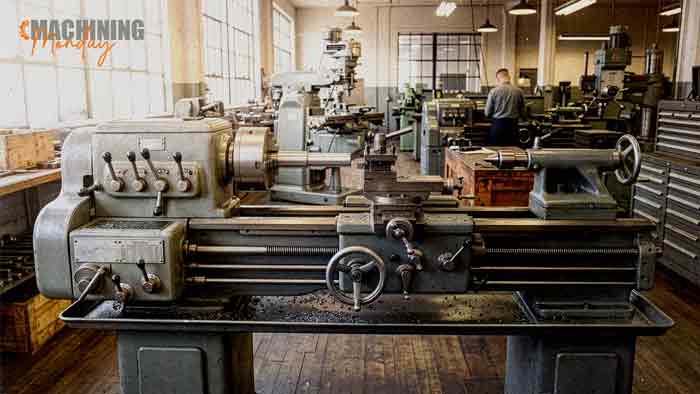

An engine lathe is a powered metalworking lathe that spins the workpiece in a headstock spindle and drives the cutting tool along the work under mechanical power rather than by hand. What separates it from a simpler lathe is the carriage: it rides the bed on precision ways and is fed by a leadscrew and a feed rod geared back to the spindle, so the tool advances a fixed distance for every turn of the work. That geared relationship is the whole point, because it is what lets the machine cut a screw thread of a chosen pitch, take a consistent finishing pass, and repeat either one exactly. Every manual lathe you would recognize in a job shop, from a nine inch benchtop machine to a sixty inch oil country lathe, is an engine lathe.

The Name Has Nothing to Do With Steam

Ask around a shop and you will get the same answer twice out of three times: it is called an engine lathe because the first ones were driven by a steam engine through a line shaft instead of a treadle worked with your foot. Tidy explanation. Probably wrong.

The word engine is older than the steam engine by several centuries. It comes from the Latin ingenium, and for most of its life in English it meant a contrivance, a clever mechanical device, with no implication that anything was burning. That is the sense preserved in fire engine, which pumps, and in cotton gin, where gin is a worn down form of the same word. An engine lathe, read that way, is a lathe that is a machine in its own right rather than a tool a person operates, because the feed is mechanized and geared instead of guided by hand.

The timing supports the older reading. The defining features, the slide rest and the geared leadscrew, were in place before shop steam power was widespread, and plenty of early engine lathes ran off a water wheel or a hand crank. The name describes the mechanism, not the prime mover, which is why it survived flat belts and cone pulleys, the countershaft and back gear era, and the arrival of the geared headstock when individual electric motors became normal in the early twentieth century. It is still the word on the tag today, generations after the last line shaft went quiet.

Maudslay Did Not Invent It. He Made It Industrial.

Henry Maudslay gets the credit and he mostly deserves it, but the usual telling skips the part that matters. He did not invent the screw-cutting lathe. People had been building versions of one for three hundred years before he touched it.

A design with a slide rest and a leadscrew appears in a fifteenth century German manuscript. Leonardo sketched screw-cutting machines with twin leadscrews and change gears. Henry Hindley built a working one around 1739 with hand-cranked gears that allowed different pitches. Jesse Ramsden put together what is generally called the first truly modern screw-cutting lathe in 1775, with a leadscrew, a slide rest and change gears, which is to say the architecture still sitting in your shop. A French mechanic named Senot built one at industrial capacity in 1795.

So the parts existed. What did not exist was a machine accurate enough, rigid enough and repeatable enough that a manufacturer could put it on a floor and produce work with it all day. That is what Maudslay delivered in 1800, and the difference between inventing something and making it industrial is the difference between a curiosity and an industry.

Born in Woolwich in 1771 and dead at fifty-nine in 1831, Maudslay built his lathe around a tool holder on a slide rest that traveled on accurately planed surfaces, so the cutter moved in a straight line because the machine made it, not because a craftsman held it steady. Power went from the spindle to the leadscrew through changeable gears, which set the ratio between spindle rotation and tool travel and therefore set the pitch of the thread. Change the gears, change the pitch. The same obsession shows up in the bench micrometer he built to read one ten-thousandth of an inch, which he nicknamed the Lord Chancellor because it settled arguments, and in the fact that he standardized the threads in his own shop and cut matched sets of taps and dies to hold that standard decades before anyone standardized threads nationally.

There is a saying in the trade that the lathe is the mother machine, the one tool that can make the parts for another of itself. Not quite literally true, but the spirit is exactly right, and 1800 is where it becomes true in practice. A machine that could cut an accurate thread could produce the leadscrew for the next machine. A machine that could turn a true cylinder could produce its own spindle. Accuracy stopped being something a single craftsman carried in his hands and became something a shop could manufacture.

America Got There First and Made Nothing From It

Two years before Maudslay's lathe, on December 14, 1798, a Rhode Island machinist named David Wilkinson patented a screw threading machine of his own. It used a slide rest, it cut threads, and contemporary accounts describe it handling planing, turning and boring in metal of every kind.

His patent ran out in 1812 and he made almost nothing from it. Thirty-six years later he petitioned Congress. In 1848 the Senate Committee on Military Affairs looked at the record, called him the true and undisputed author of the invention, reported that it had been indispensable to the manufacture of firearms, and noted that the public armories were by then running roughly 200 lathes on his pattern. Congress voted him $10,000. He was seventy-seven.

Historians have since argued about how much of that is fair. The original 1798 patent documents burned in the 1836 Patent Office fire and had to be reconstructed from later drawings, and the machine as described has real limitations, so how directly the armory lathes descend from Wilkinson's design is an open question. What is not in question is that by the 1840s the interchangeable parts work at Springfield and Harpers Ferry, the thing that eventually got called the American system of manufactures, was running on screw-cutting lathes, and that the government thought the lineage mattered enough to pay for it.

Two men, two countries, two years apart, working the same problem in parallel. That is usually the sign that a problem had become unavoidable, not that somebody got lucky. By 1800 the world needed accurate threads badly enough that it was going to get them from somebody.

The Five Apprentices Who Built an Industry

The lathe is only half of what came out of Maudslay's shop. The other half walked out the door.

Five men trained there and then built most of the British machine tool industry between them. Richard Roberts produced the self-acting spinning mule and a planing machine that did for flat surfaces what the lathe had done for round ones. David Napier built printing machinery and marine engines. Joseph Clement was the machinist Charles Babbage hired to build the Difference Engine, a job that pushed the precision of the day past where it had been and is a large part of why the thing was never finished. James Nasmyth designed the steam hammer in 1839, which made large forging practical and gave the industry a way to make big parts as well as accurate ones.

And Joseph Whitworth finished the job his teacher started. In 1841 he proposed a national screw thread standard: a 55 degree thread angle with rounded crests and roots, pitch specified by diameter. It was the first national screw thread standard anywhere in the world. Before it, a bolt from one shop had no reason to fit a nut from another, and every company that cared kept a house standard that stopped at its own gate.

Follow the chain. Maudslay builds a lathe that can cut a thread to a chosen pitch and hold it. He standardizes threads inside one shop because now he can. His apprentice standardizes them for a country. That is interchangeable manufacturing arriving in three steps, and step one is a lathe.

The Parts of an Engine Lathe and What Each One Does

Eight castings and shafts do all the work. Reading left to right on a standard machine, with what each one tells you on a used one:

That geared relationship between rotation and linear travel is the direct ancestor of everything that came after. A CNC lathe does the same thing with a servo and a position loop instead of a gear train. Rotate the work, move the tool a known amount for a known amount of rotation. The G-code your machines run today describes the same relationship Maudslay cut into a gear train in 1800.

Swing and Center Distance, the Two Numbers That Size a Lathe

Swing is the largest diameter the machine will rotate. It is quoted over the bed, meaning the maximum diameter that clears the ways, and that number is roughly twice the distance from spindle centerline to bed. There is a second, smaller figure, swing over the cross slide, which is the biggest diameter that clears the carriage assembly, and it governs most real work because most work has to pass the tool. A machine listed at 16 inches of swing may give you only 10 over the cross slide. Buyers get caught by this constantly.

Distance between centers is the longest part the machine will take, measured headstock center to tailstock center with the tailstock run out. It is not bed length, which is the full length of the ways. Bed length minus the room the headstock and tailstock occupy is what you actually get. So a 16 by 60 lathe swings 16 inches over the bed and takes 60 inches between centers. Check the second swing number, check spindle bore if you plan to run bar, and confirm which way the builder quotes both before you agree on anything.

One distinction worth having. An engine lathe and a toolroom lathe are the same machine built to different tolerances, the toolroom version held to tighter spindle runout and alignment with a finer feed range, meant for tool and die work rather than production. A turret lathe is a different animal again, trading the tailstock for an indexing head so an operator can bring a sequence of tools to the work without breaking setup.

Why Every Shop Still Needs a Manual Engine Lathe

A manual engine lathe is the only machine on the floor that goes from problem to chip in the time it takes to walk over and chuck the part. No model, no post, no proveout, no tool table. Somebody walks up with a part, chucks it, and cuts. For a quantity of one that is not a small advantage over a CNC lathe, it is usually a decisive one, because the setup and program will outlast the actual cutting by an hour.

The work it absorbs is the work that would otherwise interrupt something profitable. Facing a shaft end. Opening a bore two thousandths. Turning soft jaws true. Making a bushing, a spacer, a fixture pin, an arbor, a plug gage for a job that ships tomorrow. Cleaning up a weld. Taking the burr off a part that came back from an outside vendor wrong. None of it is worth a CNC setup, and all of it stops production if there is nowhere to do it.

It is also the cheapest redundancy you can buy. When the CNC lathe goes down mid-job, a manual machine is the difference between a late shipment and an ugly but delivered one. And it teaches: a machinist who has cut a thread by hand and felt the difference between a sharp insert and a dull one through the crossfeed handle understands what the CNC is doing when the numbers come out wrong. That knowledge is getting rarer, and a shop with a manual lathe and somebody willing to show a new hire how to use it has a training asset for the price of a used machine.

Which brings up the last argument. A serviceable used engine lathe is one of the least expensive machines in the industrial market, and depreciation stopped decades ago on most of them. The design has not changed in any fundamental way since 1800, so a well-built 1975 machine does the same job as a new one, and the ways, the spindle and the leadscrew are all things you can put your hands on in ten minutes.

Resell CNC Take

Everything in that last column is checkable in ten minutes, and the order matters. Ways first, paint last. A lathe with surface rust and straight ways is a better buy than a repainted machine with a hollow in the first twelve inches, because rust comes off and a worn bed does not. Sellers know which of those two is cheaper to fix before a sale, which is why the pretty ones deserve more scrutiny, not less.
